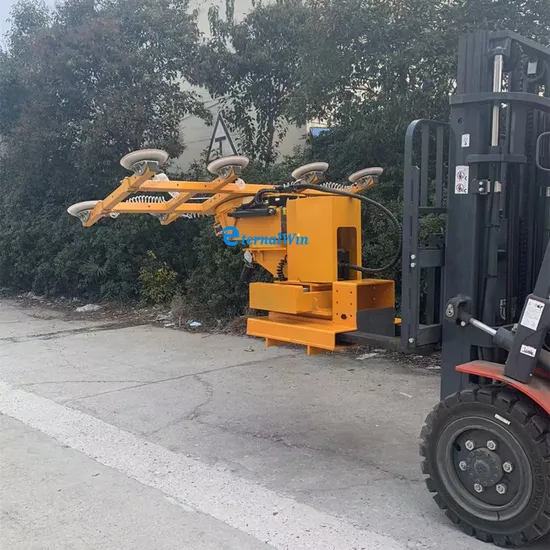

Window Glass Equipment Vacuum Marble Glass Lifter Installed on Forklift

Product Description

Customized 600kg 800kg Electric Glass Sheet Vacuum Lifter for Forklift Truck
Product Description

Model	EW300	EW400	EW500	EW600	EW800
Loading Capacity	300KG	400KG	500KG	600KG	800KG
Sucker Cup Size	Φ250*4	Φ300*4	Φ300*6	Φ300*6	Φ300*6
Frame Size	1000*800mm	1000*800mm	1350*1000mm	1350*1000mm	1350*1000mm
Battery Type	12V/20Ah *2
Charger	24V/Ah
Flipping Method	90°(Electric)
Rotation Method	360°(Electric/Manual)
Side Turn Method	Left/Right 90°(Electric/Manual)
Package Size	110*80*50cm	110*80*50cm	124*108*113cm	124*108*113cm	124*108*113cm

Main Advantages:
Forklift Mounted Vacuum Lifting Attachments - Battery self powered Vacuum lifting attachments can safely and easily be attached directly to the end of the fork, to make a practical installation device for for glass, metal, concrete slabs, plastics and laminates etc. Widely used in the factory, warehouse or on site to allow for safe and efficient glazing of glass and windows weighing up to 800kg.1. Battery self powered, fully integrated and independent power supply to drive the equipment2. Manual and Powered 360°rotation and Side turning for optional3. No installation required4. Adjustable position suction pads5. Radio control operation for 90°tilt , release and suction6. Easy to maintain and repair on site7. With 4 pcs long screw to fix the adaptor, Easily securedto forks.For added safety, securing chains supplied for optional to secure the attachment back to the forklift mast.


Packaging & Shipping

Customer Visit
Company Profile
Henan Eternalwin Machinery Equipment, established in 1998, is a one-stop solution supplier engaged in the research, development, sale and service of all kinds of vacuum lifting equipments, such as glass vacuum robot, glass vacuum lifter, metal sheet vacuum lifter, forklift vacuum lifter, sandwich panel vacuum lifter. Our lifters are approved by CE certificate. Because of high quality products, competitive prices and excellent services, our products sell well all over the world, like USA, UK, UAE, Germany, France, Italy, Spain, Philippines, Malaysia, Russia, Australia and many other countries. Welcome to contact us any time. We are glad to work together with you and supply the satisfied products!

FAQ
Q 1: What do i need to offer when purchasing vacuum lifters from you?
Please tell us your glass weight and measures and other details what you have. We can offer you the best solution.
Q 2:What kinds of payment terms can you accept?
We have different methods about payment, such as T/T, Western Union, L/C. If your local bank has other requirements, We can talk later, it is not a problem during our business.
Q 3: What trade terms can you accept?
We normally trade with our customers in EX-Works, FOB, CFR and CIF. Our loading ports are Qingdao, Shanghai, Ningbo, Yiwu, Guangzhou.
Q 4: How about the lead time?
Normally 15 to 20 working days after down payment.
Q 5: How about the transportation?
We usually deliver vacuum lifter by sea, by train or air which is the best for our customers

---
