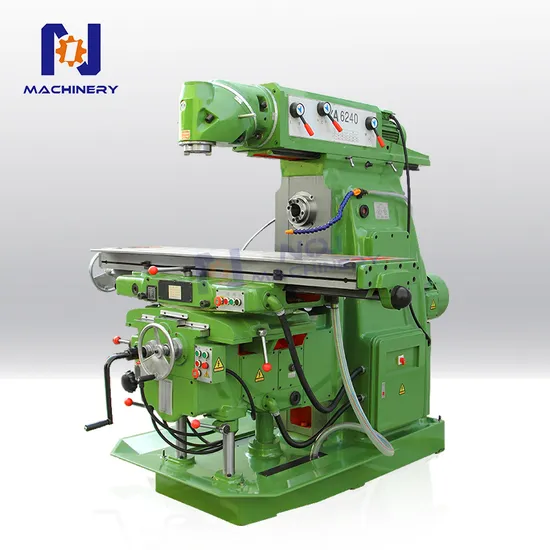

Xa6240 Heavy Duty 3-Axis Universal Turret Milling Machine, Vertical Type Fresadora for Precision Metal Milling

Product Description

Product Description


The standard configuration of the XA6240 heavy-duty universal rotary head milling machine includes three-axis automatic feed for precise and efficient machining, as well as a dual-purpose vertical and horizontal milling capability, enhancing its versatility for a wide range of applications. The optional configurations for the XA6240 heavy-duty universal rotary head milling machine include:
Three-axis digital display for enhanced precision and ease of operation.
Dividing head for complex angular and rotational machining tasks.
CNC conversion capability to upgrade for automated and programmable operations.
Pressure plate for secure workpiece clamping during machining.

Product Parameters

PARAMETER ITEM	UNIT	XA6232	XA6240
Working desk size	mm	1320x320(1600x320)	1700x400 (2000x400)
Work table T-slot number / width/spacing	mm	3-18-70	3-18-90
Workbench maximum overload	kg	300	500
X direction (table longitudinal) manual/ maneuver	mm	700 /680( 900 Optional)	900/880( 1100 Optional)
Y direction (slide lateral) manual / maneuver	mm	255/240	315/300
Z direction (lifting table vertical) manual / maneuver	mm	380/360	380/360
Cutting feed rate	mm/min	X. Y:23.5-1180 Z:8-394	X. Y:23.5-1180 Z:8-394
Fast moving speed	mm/min	X:2300 Y:2300 Z:770	X:2300 Y:2300 Z:770
Spindle speed range (V/H)	rpm	V: 35-1600 H: 30-1500	V: 35-1600 H: 30-1500
Spindle speed series (V/H)	steps	V: 11 H: 18	V:11 H:18
Spindle Taper	-	V:ISO40 7:24 H:ISO50 7:24	V:ISO40/50 7:24 H:ISO50 7:24
Worktable maximum turning angle	.	±45°	±45°
Spindle center to table distance	mm	30-350	30-410
Spindle motor power	kw	7.5	11
Dimensions	mm	2294x1770x1665	2560x2130x1800
Machine weight (about)	kg	2650	3850

Detailed Photos
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 80,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.



FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
