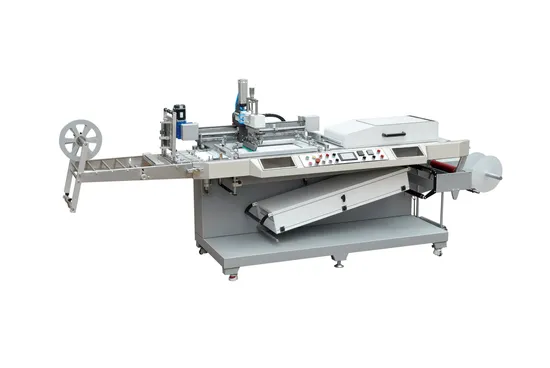

Automatic Roll to Roll Fabric Screen Printing Machine

Product Description

MHS-126s-label screen printing machine1.The machine employs the Japanese Panasonic Programmable controller(PLC) to make the circuit of the controller simple, reliable and stable
2.the drying system employs the hot plate and infrared ray drying
3.It is specially applied to printing the taping woven ribbons, rubber strips, woven marks, leathers, PVC, PC, PET, soft and hard film, various board, film, paper, etc
4.All sorts of different thickness of the material, the paper,board, high precision, fine flat screen printing. Cigarette, wine, tea, medicine and cosmetics packing,
1.High speed: It can printing 13m/min.
2.Accuracy: can printing 10 line at the same time (the fabric width :20mm)
3.with the sensor tracking it can printing second time .
4.Memory: Set-length, set-quantity & set-speed are not erased even if power off & on . Automatic operation: It works autoally only by setting length and quantity

Model	MHS-126s	MHS-226
Printing color	Single color	Two color
Printing Area	400x260mm	350x260mm
Frame Size	600x400mm	600x400mm
Speed	13M/min	10M/min
Power	220V/8KW	220V/7KW
Weight	600kg	1200kg
Dimension	4000x1000x1500mm	3800x950x1350mm

---
