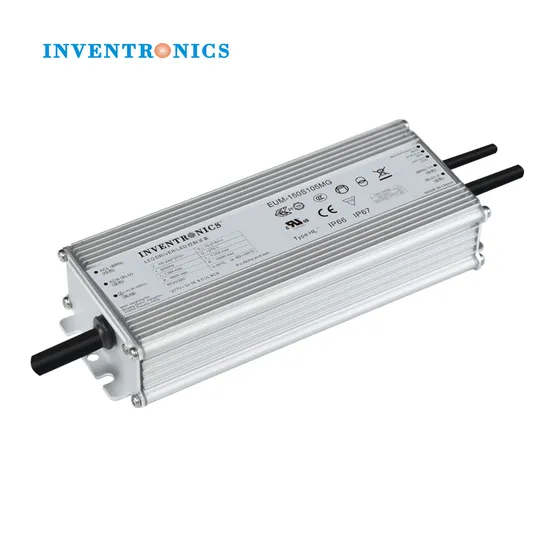

Inventronics 150watts 150W 0-10V Dim-to-off Dimming COB LED Grow Light Driver

US$21.50-28.00 100 Pieces (MOQ)

Basic Info.

Model NO.

EUM-150S105MG EUM-150S150G EUM-150S420MG EUM-150MG

Driving Method

LED Constant Current

Circuit Structure

Electronic Step-down Transformer

Certification

TUV, CE, RoHS, ISO9001, CCC, LVD, EMC, Bis, FCC, ENEC, CB, Ks Kcc, PSE, Nom cUL

Power Supply Mode

Constant Current Source

Modulation System

Isolated 0-10V PWM 3-Timer-Modes Dimmable

In-Out

AC 90-305V Input, DC Output

Power Supply Voltage

AC85-265

Pack Sealing Size

SMD

Brand

Inventronics

Product Name

Inventronics 150W Dim-to-off LED Gorw Light Driver

Adjustable Output Current

70-1050mA; 105-1500mA; 140-2100mA; 280-4200mA

Output Voltage Range

72~214VDC; 50~143VDC; 36~107VDC; 18 ~ 54VDC

Warranty

5 Years

Dimming Functions

Isolated 0-10V PWM 3-Timer-Modes Dimmable

IP Class

IP66 / IP67 and UL Dry / Damp / Wet Location

Input Surge Protection

Dm 6kv, Cm 10kv

Efficiency

Super High Efficieny, up to 93.5%

Power Factor

0.99 at 120VAC; 0.96 at 220VAC

Protections

All-Around Protection: Iuvp, Iovp, Ovp, SCP, Otp

Features

Inv Digital Dimming, Uart Communication Protocol

Other Features

Class 2 & Selv Output, End-of-Life Indicator, Aoc

Applications

LED Grow Light, Hydroponic Lighting, Street Lamps

Delivery Time

3 to 60 Working Days Due to Models and Quantity

Shipping Way

by Sea, by Train, by Air, by Express DHL FedEx etc

Transport Package

25PCS Per Inner Tray, 100PCS Per Brown Carton

Specification

7.01"x2.66"x1.44" inches (178x67.5x36.5mm), 790g

Trademark

Inventronics

Origin

Hangzhou, Zhejiang, China

HS Code

8504401400

Production Capacity

20000pieces/Month

Packaging & Delivery

Package Size

20.00cm * 7.00cm * 5.00cm

Package Gross Weight

2.500kg

Product Description

Product Parameters
Models:

Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency (3)	Power Factor		Model Number (5)
Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency (3)	120Vac	220Vac	Model Number (5)
70-1050mA	700-1050mA	700 mA	90~305 Vac/ 127~300 Vdc	72~214 Vdc	150W	93.0%	0.99	0.96	EUM-150S105MG
105-1500mA	1050-1500mA	1050 mA	90~305 Vac/ 127~300 Vdc	50~143 Vdc	150W	93.5%	0.99	0.96	EUM-150S150MG
140-2100mA	1400-2100mA	2100 mA	90~305 Vac/ 127~300 Vdc	36~107 Vdc	150W	92.0%	0.99	0.96	EUM-150S210MG (4)
280-4200mA	2800-4200mA	3150mA	90~305 Vac/ 127~300 Vdc	18 ~ 54 Vdc	150W	91.5%	0.99	0.96	EUM-150S420MG (4)

Notes: (1) Output current range with constant power at 150W (2) Certified input voltage range: UL, FCC 100-277Vac; otherwise 100-240Vac. (3) Measured at 100% load and 220Vac input (see below "General Specifications" for details). (4) SELV output. (5) MG are UL Recognized, ENEC and CCC, etc. models.
Product Description
Fetaures: Full Power at Wide Output Current Range (Constant Power) Adjustable Output Current (AOC) with Programmability Isolated 0-10V/PWM/3-Timer-Modes Dimmable INV Digital Dimming, UART Based Communication Protocol Dim-to-Off with Standby Power ≤ 0.5 W Always-on Auxiliary Power: 12Vdc, 250mA, 3W (Transient Peak Power up to 10W) Output Lumen Compensation End-of-Life Indicator Input Surge Protection: DM 6kV, CM 10kV All-Around Protection: IUVP, IOVP, OVP, SCP, OTP IP66 / IP67 and UL Dry / Damp / Wet Location TYPE HL, for Use in a Class I, Division 2 Hazardous (Classified) Location 5 Years Warranty Descriptions: The EUM-150SxxxMx series is a 150W, constant-current, programmable and IP66/IP67 rated LED driver that operates from 90-305Vac input with excellent power factor. Created for smart lighting application, this family provides an auxiliary voltage and dim-to-off functionality for powering low voltage, wireless controls. The dimming control supports 0-10V dimming as well as two-way communication via Digital Dimming, a UART based communication protocol. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, input under voltage, input over voltage, output over voltage, short circuit, and over temperature. Detailed Photos
