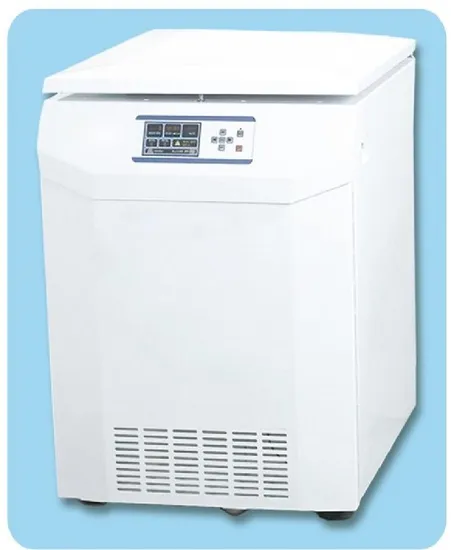

Large Capacity Vertical Medical Low-Speed Freezing Centrifuge

Product Description

configuration
Product Description The machine adopts microcomputer control, maintenance-free carbon-brushless AC frequency conversion motor drive, low noise, high speed precision, programmable operation; Large capacity, stable, durable, continuously optimized electrical control, equipped with the latest ultra-light high-capacity rotor, greatly improved efficiency.
Centrifugal speed to 100rpm step, accuracy up to t20rpm
Acceleration/deceleration time can be set within the allowable range according to customer demand using environmentally friendly refrigerant, in line with environmental requirements, the temperature range of -20ºC~40ºC at the highest speed can still stably maintain the temperature in the centrifugal chamber of 4 degrees
Automatic monitoring of imbalance, overspeed, overtemperature, door locks and other protection
When the rotor loses balance, an error code will be displayed, alarm and automatic stop will be required when the blood bag weight difference is 3*50g
Adopt no carbon brush, frequency conversion motor, no worries
Fuselage steel structure, three layers of protection, safe and reliable
Low vibration, quiet operation, noise below 65 dB
Blood station special water square cup rotor 6x1000 ml, a time can separate 400ml five blood bags 6; There are 24 100ml platelet transfer bags
Centrifugal chamber diameter φ600mm

Model	JW-1062R
Max Speed	6500rpm
Max. Rcf	6680xg
Capacity	1000mlx6
Speed accuracy(rpm)	±20rpm
Timer range	-20°C~40°C
Temperature Accuracy	±2ºC
noise	≤65dB
power supply	AC220V 50Hz 30A
power	4500W
weight	256Kg
Overall dimensions [L x W x H]	840*730*950mm

rotor configuration

Rotor	Capacity	Max Speed	Max. Rcf
NO1:Angle Rotor	250mlx6	6500rpm	6610xg
NO2:Angle Rotor	300mlx6	6500rpm	6610xg
NO3:Angle Rotor	500mlx6	6000rpm	6680xg
NO4:Horizontal rotor	1000mlx6	4200rpm	5100xg
NO5:Horizontal rotor	1000mlx6	4200rpm	5100xg

---
