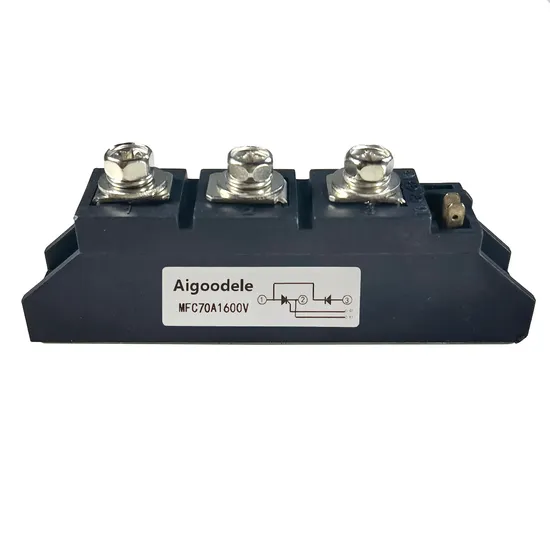

Silicon Controlled Rectifier Bridge Fast Thyristor Module MFC70A1600V

Product Description

Product Description
1.Welding technique under the protection of vacuum and hydrogen, the insulation voltage between the chip and the baseplate is 2500VAC.
2.Fully pressure welding structure, good temperature characteristics and power cycling ability.
3.International standard capsulation, small&light, easy in installation and convenient in use and maintenance.
4.Air-cooling If≤350A, air-cooling or water-cooling If≥400A.
5.Convenient installation, use and maintenance
6.Compact and lightweight
7.Welding technique under the protection of vacuum and hydrogen gas Product Parameters

Type	IT(AV) A	VDRM/VRRM V	IDRM/IRRM mA		VTM/ITM		IGT mA	Vgt V	IH mA	dv/dt V/μs	di/dt A/μs		ITSMIFSM A*1000	Tjm ºC	Viso V(AC)
					V	A
MFC25A	25	400-2600	8		1.69	80	100	2.5	100	800	50		0.55	125	2500
MFC55A	50	400-2600	8		1.69	170	100	2.5	100	800	50		1.25	125	2500
MFC70A	70	400-2600	10		1.9	170	100	2.5	100	800	50		1.60	125	2500
MFC90A	90	400-2600	15		1.9	270	100	2.5	100	800	100		2.00	125	2500
MFC110A	110	400-2600	20		1.9	330	100	2.5	100	800	100		2.40	125	2500
MFC130A	130	400-2600	20		1.9	410	150	2.5	100	800	100		3.80	125	2500
MFC160A	160	400-2600	25		1.9	480	150	2.5	100	800	100		5.40	125	2500
MFC200A	200	400-2600	30		1.9	600	180	2.5	100	800	100		7.20	125	2500
MFC250A	250	400-2600	40		1.9	750	180	2.5	100	800	100		8.50	125	2500
MFC300A	300	400-2600	30		1.9	900	180	2.5	100	800	100		9.30	125	2500
MFC400A	400	400-2600	40		1.9	1050	200	3	100	800	100		14.0	125	2500
MFC500A	500	400-2600	50		1.9	1500	200	3	100	800	100		16.0	125	2500
MFC800A	800	400-2600	50		1.9	2400	200	3	100	800	100		16.0	125	2500
MFC1000A	1000	400-2600	50		1.9	3000	200	3	100	800	100		16.0	125	2500
MFC500A*	500	400-2600	40		1.9	1500	200	3	100	800	100		11.0	125	2500
MFC800A*	800	400-2600	40		1.9	2400	200	3	100	800	100		16.0	125	2500
Note:
1. * means water-cooling module.				2. The parameters is the chips rated value.

Application AC & DC motor controlVarious rectifying power supply
Industrial heating control
Dimming
Contactless switch
Motor soft start
Static reactive compensation
Welder
Frequency converter
UPS power supply
Battery charge and discharge
Detailed Photos

Company Profile Zhejiang Lingshine Electric Co., Ltd (Aigoodele), is a high-tech enterprise integrating production, sales and service. Our main products are frequency converter (VFD), soft starter (LSRQ), solid state relay (SSR), solid state voltage regulator (LSCR), high power rectifiers and so on (KP, ZP, MTC, MDS, MDQ, MDC, MDK, ETC). These products have been widely used in energy, petroleum, metallurgy, chemical industry, construction, plastics, textile, water supply, paper making, mining, printing and many other industrial fields. In addition, our products not only perform well in the domestic market, but have also been exported to dozens of countries and regions in Asia, Africa, Europe and other continents, winning wide international recognition.
We look forward to cooperating with every customer, welcome your guidance and suggestions, and work together to create a more brilliant future.
FAQ Q1.Can you provide price sheet and catalog to me ?We are pleasure to provide these to you for reference,you can cotact me,give me your emails ID.
Q2.Can I get some samples?
Yes,Sample order is available for quality check and market test .but you need to pay the sample fee and shipping cost
Q3.How long is your lead time?2-3 days for the stocks items, mass production generally needed 1-2 weeks.
Q4.What's your payment terms?
We usually accept all kinds of payment terms.Such as T/T,L/C,Western Union.Cash.
Q5.What's your warranty terms?
We offer 12 months warranty time.
Q6.Do you have the products in stock?
Depends on your request,We have standard models in stock.Some special products and big order will be newly produced according to your order.
Q7 How about your payment and shipment?Payment: We accept T/T, Western Union, Paypal, Cash etc.We usually ship via DHL, UPS, FedEx or TNT, SF for small order and via ocean for bulk order according to your requirement.
Q8.How does your factory do the quality control?
Quality is priority,we always attach the importance to quality control from the beginning to the end of the production.every product will be fully assembled and carefully tested before packing and shipping.

---
