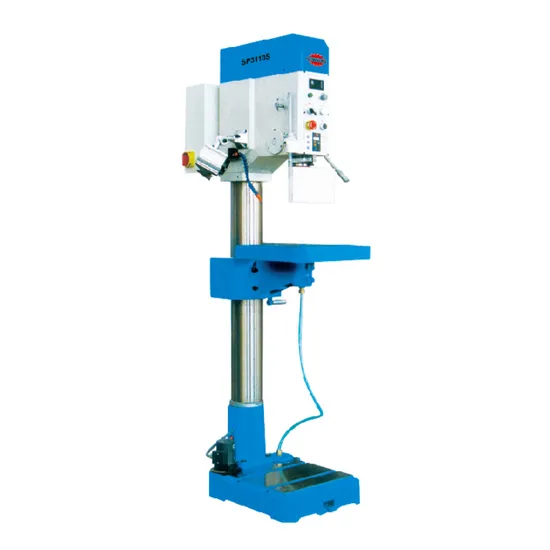

40 mm Sumore Drilling Machine Pillar Column 40mm Vertical Drill Press Machine Z5032 Z5040 Z5050

Product Description

Product Description
Deep hole hydraulic vertical floor type drilling machine for home/factory
Quick Detais
1.Drilling capacity:32mm
2.Motor power:1100W/1500W
3.Class speed:5/12/16
4.Table size:320*320mm
Advantages
1. Adjustable depth stop
2. Quiet belt drive operation
3. FWD/REV toggle switch
4. Headstock runs in precision-bearings
5. Speeds allow selection of optimum speeds at the work piece
1. Keyed safety switch prevents accidental starting2.16-speed settings to accommodate various materials and thicknesses3.290mm cast iron worktable, height adjustable4. Rack and Pinion table elevation makes adjusting the table height easy and accurateScaled steel fence helps align, guide and brace work pieces, stop block for repetitive drilling jobs
Product Parameters

Model SP3110S Max. Drilling Capacity 32 mm Spindle Stroke 115 mm Distance from spindle axis to generating line of column 290 mm Max. distance from spindle nose to working surface of work table 790 mm Max. distance from spindle nose to working surface of base plate 1,300 mm Max. adjustment of work table and table rost 790 mm Spindle bore taper MT3 Spindle Speed L 55-350 r.p.m W 350-2,300 r.p.m Diameter of column Φ120 mm Effective working area of table 320x320 mm Effective working area of base plate 380*380 mm Dimension of T-slot of table and base plate 2-12 mm Swivel of table and table rest ±45 Motor Power 1.1 KW Voltage Customized Pump motor power 0.06 KW Net Weight 310 kg Packing Size (LxWxH) 900*590*1980mm Gross Weight 360 kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
