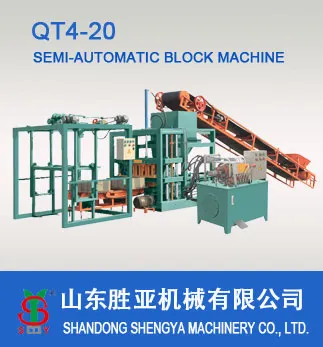

Medium Block Machine Qt4-20 Automatic Hydraulic Concrete Block& Paver Brick Machine Price

Product Description

Sunny




Shandong Shengya Machinery Co.,LTD. was founded in 1995, We have been always working for the concrete block machines and mixers design, production and sales. For many years we have to perfect the quality, export block machines to more than 100 countries and regions, and also have office in Nigeria, Kenya, Tanzania,Ethiopia,Côte d'Ivoire and Cameroon. now, then can serve the clients much better.
1.Advantage of QT4-20 Automatic Hydraulic Concrete Block& Paver Brick Machine Price
A: Automatic Operation, Big Capacity, Low Lobor Cost
B:Hydraulic Press, High Strength of Brick and Paver
C: Producing sizes of hollow block, solid brick, hourdis, interlocking paver and curbstone by changing molds
D: Best Choice for Medium and Small-scale Block Factory
2.Capatity Table

Brick kind	Brick size	Pcs/mold	Mouding cycle	Pcs/8hrs
Hollow/Solid block	400*200*200mm	4pcs	15-20s	6400pcs
Houdi block	500*120*200mm	6 pcs	15-20s	8000 pcs
S shape paver	225*112.5*60mm	12 pcs	15-20s	17000 pcs
Holland paver	200*100*60mm	14 pcs	15-20s	20000 pcs

3.Main Technical Parameters for QT4-20 Automatic Hydraulic Concrete Block& Paver Brick Machine Price

Main Technical Specifications
Dimension	3650(L)*2100(W)*2720(H)MM
Rated pressure	16MPa
Main vibration	platform
Vibration frequency	4600r /min
Pallet Size	900*550*25MM
Molding Cycle	15-20(s)
Overall Power	23.5kw
Pallet quantity	1500pcs
Factory Area	2000M2
Shelter Area	60M2 (10*6m)

4.Material Consumption
1) Raw Material Proportion for QT4-20 Automatic Hydraulic Concrete Block& Paver Brick Machine Price
A: 10% cement, 30% sand and 60% small stone
B: 10% cement and 90% stone powder
C:10% cement, 30% fly ash and 60% stone powder
2) Raw Mateiral Consumption per day ( Take 400*200*200 hollow blocks as expample)

Block size	Capacity per Day	Consumption of Cement	Consumption of sand and stone	Consumption of Electritiy
400*200*200mm	6400 blocks	7680KGs	69120KG	240KW

3)Workers Number required : 5-6 workers
two workers for Mixing raw material
one workers for add pallet into block machine
One workers for operation block machine
One -two workers for carring fresh block to curing site
4) Maintance:
QT4-20automatic hollow solid block making machine is easy in maintance. please clean the mixer and mold after everyday work and fasten screws and add lubrication oil to moving parts before every day work.
5) Install Service:
We will supply customers manual and install video and we will can send our engineer to customers place to help customer install machine and train workers
5. Certificate

6. Customers from all over the world
7.Factory Views

---
