portable Mini Laser Engraving Machine Laser Marker for Metal Stainless Steel Carbon Steel

Product Description

Protable mini laser engraving machine laser marker for Metal Stainless Steel Carbon Steel
Product Description

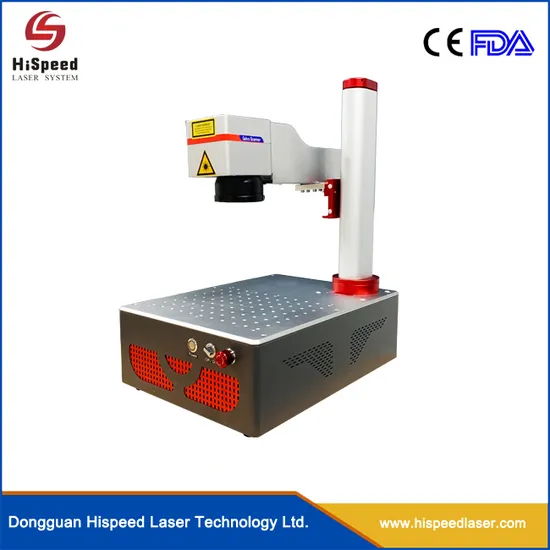

Mini portable fiber laser marking machine, is with powerful function, good performance, small and portable.Widely used to mark text, pattern, bar code and other graphics in metal, electronics,plastic and other materials. Marking on various metal and some plastic material No consumables, free Maintenance Stable performance, no faulty in long time working Long lifetime upto 100,000hours High marking speed, high efficiency, high precision Software with powerful edit function but easy operation Air cooling design, compact structure Detailed Photos

Operating software
Accessories
Application & Sample
Fiber laser marking machine wide range application,mainly for all kinds of metal and plastic.Especially suitable for hardware tools,kitchenware knifes,plastic seals products ,metal jewelry,label,integrate ciruits,frames,plumbing fittings and other products.
Product Parameters

Model	LS-YLP-20L	LS-YLP-30L
Power	20W	30W
Wavelength	1064nm	1064nm
Beam Quality	M2<1.3	M2<1.3
Output Power	10%-100%(continuously to be adjusted)	10%-100%(continuously to be adjusted)
Output Frequency	20KHz-100KHz(continuously to be adjusted)	20KHz-100KHz(continuously to be adjusted)
Power Stability(8h)	<±1%rms	<±1%rms
Focus Spot Diameter	<0.01mm	<0.01mm
Engraving Range	≤400*400mm(customized)	≤400*400mm(customized)
Engraving Depth	1.2mm	1.2mm
Engraving Speed	800 standard characters/second	800 standard characters/second
Minimum Line Width	0.012mm	0.012mm
Minimum Character	0.1mm	0.1mm
Repeated Accuracy	±0.003mm	±0.003mm
System Operation	Windows 10	Windows 10
Cooling Mode	Air Cooling	Air Cooling
Environment Temperature	10ºC~35ºC	10ºC~35ºC
Environment Humidity	20%-80%	20%-80%
Power Requirement	220V/Singlephase/50Hz/<400W	220V/Single phase/50Hz/<400W
Life of Laser Module	100000Hrs	100000Hrs
Host Size	330mm x 460mm x 420mm	330mm x 460mm x 420mm

Company Profile
Hispeed Laser Technology Ltd. Laser marking machine manufacturer is committed to producing and supplying premium laser marking machines and offering specialized laser marking solutions.
Hispeed laser marking machines are beyond all praise and have quickly taken over the market by virtue of their superior quality and advanced laser marking system. Our machines have exported to more than 60 countries of various industries and manufacturers worldwide, delivering the highest quality laser marking machines with unsurpassed care and customer service.
Other Products
Q1: What's the warranty?
A1: Two years for laser source, one year for other parts, change or repair the broken parts during warranty, our
FAE will teach you how to remove the broken parts by video.
Warranty excluding man-made damage.
We are real warranty based series number on the machine, not false or empty promises, any too long time warrantyis unreliable, ourt warrannty is effective and enforceable.
Q2: What's the package?
A2: We have 3 layers package. For the outside, we adopt wood craft case.
In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer,
the machine is covered by thickening plastic Bag for waterproof.
Q3: How to install and run the machine?
A3: You will get details in user manual, you only need install the column with laser path and put on monitor of computer.
You will get a CD of orginal marking software and online video about basic operation.
You also will get a software operation manual and you can be a laser marking master after reading and practics.
You can send your questions to our online after-serive 24 hours.
Why Hispeed Laser?

1.Factory

(1)We are Factory to make laser machines with years of experience.

(2)We are a reliable and experienced supplier. Our machine quality are assurable.

(3)CE and FDA certificate .

2.Warranty & After-Sale Service

(1) All the machines will be fully tested before shipment and free training for operator.

(2) The whole machine guarantee for 2 Years(some models)

(3) 24 hours' technical Support--Email, Telephone,Video Chat Or Romote assistance.

(4) User-friendly English Manuals for the Introduction of our Software/Machine and
CD (Guiding Videos) for Sotware's installing/Operation and
Machine'Using/Maintaining.

3.Easy to use and safety

(1)CD, Video, User Manual to guide you how to install, operate, maintain machine
step by step.

(2)limit switch for safe processing.Emergency stop-turn off machine immediately
After Service Policy
Training & Technical Support
1.Machine manual and Operation video will be provided with machine.
2.Software manual will be provided in softcopy.
3.Initial parameters in the software will be setup so the machine is "ready to use".
4.Online technical support requests will be reponsed within 1 hours during working time,we will guide you by email ,telephone or video chat.
5.Actually this laser marking machine is quite simple on operation,most of our users can start to use the machine and learn well by themselves in short time.
6.Engineer onsite technical support is available,visa ,air tickets,accommodation and local transportation fee will be on client's side.(Appointment needed )

The Difference between Hispeed Laser and Some other Suppliers
he DThe Difference between Hispeed Laser and Some other Suppliersifference between Hispeed Laser and Some other Supplie

Different Aspects	Hispeed Laser	Some Suppliers May
Windows System	Windows 10	Win 7 or XP
Laser Source/Generator	Brand New	Refurbished or Second-hand
Control Card & Software	Genuine original JCZ brand	Copied
Z-axis	Motorized Z-axis	Manuel
Red Light Focus	Two red light spot	none
Warranty	24 months	12 or 18 months
After Service	Response within 3 hours(working time)	response in 3 days or no response

Repair Parts	Send alternative parts immediately, minimized the users' production delay	Users have to send the faulty or broken parts back to the supplier firsty,wait to repaired and then resend to customer,delay production
Business Type	Factory; Real manufacturer (Indicated in the Business License)	Trading company or agent
Certifications	CE,FDA
Trade Capability	With Export License
Sales & Merchandiser Team	Years of professional experience in international business, understand customer's needs well, keep customer updated for every details,tension- free purchsing process	Lack of experience for export custom and process

FAQ Q1: What's the warranty? A1: Two years for laser source, one year for other parts, change or repair the broken parts during warranty, our FAE will teach you how to remove the broken parts by video. Warranty excluding man-made damage. We are real warranty based series number on the machine, not false or empty promises, any too long time warranty is unreliable, ourt warrannty is effective and enforceable. Q2: What's the package? A2: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic Bag for waterproof. Q3: How to install and run the machine? A3: You will get details in user manual, you only need install the column with laser path and put on monitor of computer. You will get a CD of orginal marking software and online video about basic operation. You also will get a software operation manual and you can be a laser marking master after reading and practics. You can send your questions to our online after-serive 24 hours. Q4: How can I know the machine is what exactly I need? A4: Please send us your material photo, marking speed demand, marking size demand and so on, you will get a promptly help from us. Q5: Can you give a discount? A5: No, because quality can't be discounted, but you can choose simple basic version for your application, please contact our sales to know more. Q6: How you can keep your quality. A6: Strict production process with four times checking from metal parts, optical components, installing specification to whole machines' 12 hours burning. Meet CE, FDA, and IEC standards, you will get a unquestionably reliable machine from CKD LASER! Your every peny is deserve.
>>>>>>>>>Contact Us<<<<<<<<<
Hispeed Laser is a real manufacturer of fiber laser marking machine,contact us for further information if you are interested,thanks a lot.

---
