New Dongfeng 4X2 4X4 121HP High-Capacity All-Terrain Emergency Fire Truck

Product Description

Product Description
The fire truck, a vital piece of emergency equipment, is designed to combat fires and provide rescue services. Equipped with a powerful pump and a large water tank, it is capable of delivering high-pressure water to extinguish flames. Fire trucks also carry a variety of tools and equipment, such as hoses, ladders, and cutting tools, to assist in firefighting and rescue operations. The fire truck is often the first to arrive at the scene of an emergency, providing crucial support to firefighters as they work to contain and control fires. With its distinctive sirens and flashing lights, the fire truck is a symbol of safety and protection in communities everywhere.
Specification parameters

Overall dimensions	6960×2200×2810(mm)	Rated load capacity	4800(Kg)
Gross Vehicle Weight	11300(Kg)	ABS	Standard configuration
Curb weight(kg)	6050(Kg)	Front/rear suspension	1130/2030(mm)
Approach/departure angle	21/11(°)	Front and rear Axle Load	3500/7800
Wheelbase	3800,3950,4050,4100, 4400,3600,4700(mm)	Number of axles	2
Maximum speed	105(km/h)	Number of spring pieces	8/10+7,12/12+9
Number of tires	6	Tire Size	245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR,255/70R22.5 16PR
Front track	1745,1802,1820,1842, 1765,1890(mm)	Rear track	1630,1650,1800,1720(mm)
Engine
Engine model	Displacement (ML)	Power (kw)/ horsepower (PS)	Fuel
YCY30165-60	2970	121/164	Diesel
Q28-130E60	2800	96/130	Diesel
D30TCIF1	2977	125/170	Diesel
CY4SK361	3856	125/170	Diesel
NV30-C6D	2968	120/163	Diesel
ZD30D16-6N	2953	120/163	Diesel
D25TCIF1	2499	110/149	Diesel
YCY24140-60	2360	103/140	Diesel
CY4SK161	3856	135/183	Diesel
CY4SK261	3856	125/170	Diesel
NV30-C6G	2968	115/156	Diesel
D4.0NS6B185	4000	136/184	Diesel
CA4DD2-18E6-30	3230	132/179	Diesel
YCS04190-68	4156	140/190	Diesel
D40TCIF1	4052	135/183	Diesel
D4.0NS6B195	4000	143/194	Diesel
D4.0NS6B170	4000	125/170	Diesel
CY4BK261	3707	100/136	Diesel
H30-165E60	3000	120/163	Diesel
D4.0NS6B160	4000	118/160	Diesel
NV30-C6C	3093	120/163	Diesel
Q28-156E60	2800	115/156	Diesel
CA4DB1-14E68	2207	100/136	Diesel
CA4DB2A16	2440	118/160	Diesel
Others
Select the cab according to the chassis, and opt for a red strobe light. The water tank volume is 4.800 cubic meters, and the water tank is a special-shaped tank with the front end dimensions being 1220×1120×1220mm and the rear end dimensions being 1310×2100×1220mm. The side protection structure is an integrated design, and the rear guard device material is Q235A with a cross-sectional size of 80×125mm, connected to the vehicle by bolting, with a ground clearance of 390mm. The model is ABS/ASR-24V-4S/4M. The main special equipment includes a fire pump and a fire cannon. Lights are used only during operation.

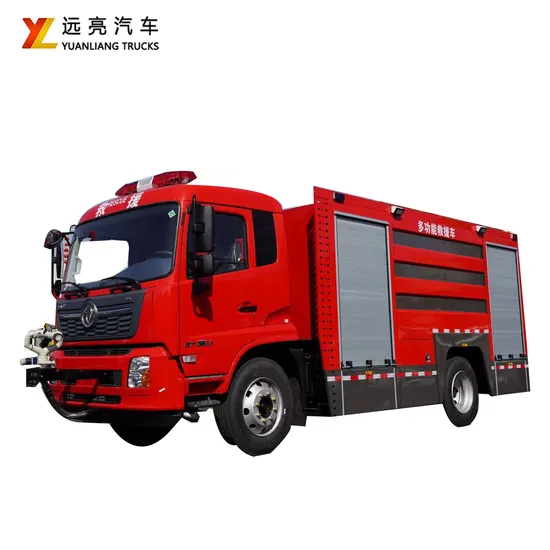

Product Picture
Company Profile
Shiyan Yuanliang Material Trading Co,Ltd. (below is short for Shiyan Yuanliang) is a professionalenterprise founded in 2003, headquartered in Shiyan City, Hubei Province, China. We are mainlyengaged in various special vehicles including R8D, production, sales, we have more than 20 years ofspecial vehicle production and sales experience. Our core business is providing you special vehiclesfor city construction, including municipal vehicles, engineering vehicles, rescue vehicles, largemanned vehicles and other series of products etc.. our products can meet various needs of urbanand rural sanitation cleaning, construction sediment transportation, road rescue and other operationsAll products of Shiyan Yuanliang meet the china national regulations and industry standards, allhave public announcement and quality certification. ln addition, Shiyan Yuanliang has passed theaudit of the lSO9001 quality system certification, ISO14001 environmental system certification anoSO45001 occupational health certification, these certifications prove that we attaches greatimportance to quality, environment and occupational health and safety, we try our best to make surethe compliance, reliability and sustainability can be well met on the products At the same time, thesecertifications also provide customers with additional confidence to prove that we have certainstandards and specifications in terms of management system and product quality, that means you choose us,vou definetly make a good choice

---
