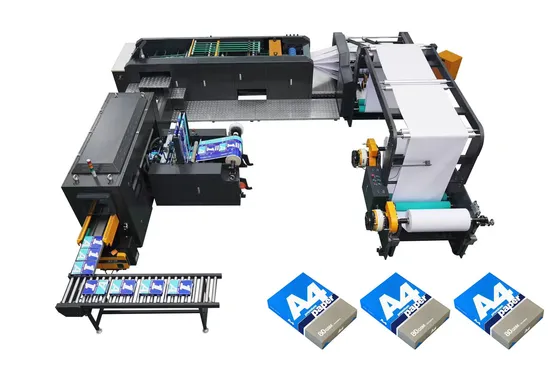

Honor A4-2 Automatic A4 Paper Making Machine

Product Description

Honor A4-2 Automatic A4 Paper Making Machine is an A4 copy printer paper making machine, designed for converting the paper from paper jumbo roll into A4 copy printer papers in reams with the packaging.
FAQ
1. What can the HONOR A4-2 Automatic A4 Paper Making Machine do?
HONOR A4-2 can convert the paper from paper jumbo roll to A4 copy printer papers wrapped in final packaging as follows. The finished products A4 paper can sell directly in the market without any further processing.

2. What are the strengths of this machine?
Working fully automatically Economic 600 to 900 reams per hour output Compact design (7m x 6.6m x 1.9m) to ensure small occupied area in the factory PLC controlled AC servo motors to ensure precise unwinding, feeding, trimming, slitting, cutting, conveying and wrapping NSK bearings etc famous brand parts to ensure the macine working for many years One machine = Two machines (Paper slitting machine + Paper wrapping machine)
3. I'd like to know more specifications about the HONOR A4-2.
Please check the following table:

Model:	HONOR-A4-2
Paper Parent Roll Width	845-850mm
Production speed	Max 260m/min
Cutting accuracy	±0.2mm
Jumbo Rolls numbers	2 Rolls
Cutting numbers	2 Cuttings
Output of the ream	10-15 Reams/min
Power	23kw+18kw
Dimension(L*W*H)	7000mm*6600mm*1950mm

4. Detailed Specifications
The HONOR A4-2 Double-Cycle Synchronous Slitting and Servo-Driven Automatic Paper-Cutting Packaging Line is an advanced manufacturing solution that integrates electrical automation, PLC control systems, and mechanical automation into a seamless workflow. This production line encompasses the processes of paper roll unwinding, slitting, cutting, counting, conveying, horizontal output, positioning packaging, packaging paper positioning spraying, finishing, and discharging-all within a continuous, fully automatic, high-speed, and high-precision operation.
Key Features:
- Compact Design: With its comprehensive capabilities, the system occupies a minimal footprint, requiring only a 6.5m x 6.5m installation space.
- Cutting-Edge Technology: It employs the latest double-cyclotron synchronous shearing technology, achieving high production speeds, extended blade longevity, clean cuts, and dimensional accuracy that meets international standards (+0.2mm).
- Energy Efficiency: The innovative double-cyclotron helical cutter shaft design allows for synchronous shearing with a fixed transmission ratio, consuming only one-third to one-fourth the power of traditional methods.
- Superior Components: Utilizes top-tier German-imported bearings and Swiss-imported Habasit conveyor belts to ensure durability and leading product quality.
- Customizable Solutions: Capable of operating at speeds up to 50 reams per minute, this equipment can be tailored to meet the specific budgets and requirements of different customers while maintaining exceptional processing efficiency.


5. Working in the customer's workshop

---
