| Type | Pb | Ht | Hs | | Type | Pb | Ht | Hs |
| ZA | 9.525 | 1.91 | 4.10 | | ZBS | 9.525 | 2.80 | 5.10 |
| ZB | 9.525 | 2.29 | 4.50 | | FS8M | 8.000 | 3.05 | 5.30 |
| ZH | 9.525 | 3.50 | 5.50 | | YU | 8.000 | 3.11 | 5.20 |
| YH | 8.000 | 3.04 | 5.20 | | MY | 8.000 | 3.11 | 5.21 |
| ZR | 9.525 | 3.20 | 5.40 | | MR | 9.525 | 3.54 | 5.69 |
| YS | 8.000 | 2.95 | 5.20 | | RU | 9.525 | 3.56 | 5.70 |
| ZS | 9.525 | 3.53 | 5.70 | | ZLB | 9.525 | 2.70 | 5.05 |
| ZAS | 9.525 | 2.32 | 4.62 | | ZD | 9.525 | 3.50 | 5.50 |
| Test Item | Pitch type | ||||||
| Tension test | ≥KN/25.4 mm Tension strength | MXL | XL | L | H | XH | XXH |
| 0.59 | 1.96 | 2.65 | 6.77 | 9.32 | 10.80 | ||
| ≤% Elongation | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | |
| Pitch type | MXL | XL | L | H | XH | XXH |
| KN/25.4mm loading | 0.49 | 1.57 | 2.16 | 5.39 | 7.46 | 8.64 |
| 2.1 Type Timing Belts |
| |
| Features: • trapezoidal tooth timing belt will be applied for positioning driving field • high strength, good toughness, tensile • ear-resistant, oil resistant, anti-moisture (anti humidity) • long life, low-cost, no need for lubrication Materials: • Chloroprene rubber material • Fiberglass framework •Nylon canvas tooth surface Application: It is widely used in office equipment, sewing machine, automatic trading machine, agricultural machine, food processing, HVAC, Oil field, carpentry and papermaking, etc. |
|

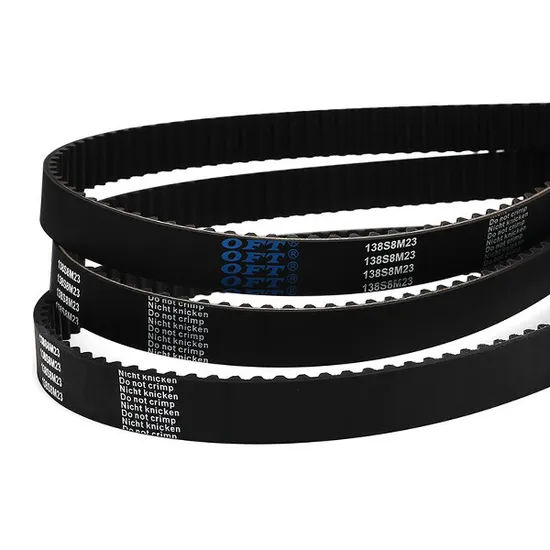

| 2.2 -Round HTD Timing Belts |
| |
| Features: • The power of Round HTD tooth timing belt is enhanced 30% compared with that of trapezoidal tooth belt. • High strength, good elasticity, high tensile stress. • Oil resistant, moisture resistant, good adaptability to environment. • Lubrication-free and no need for further tension, low maintenance costs Materials: • Chloroprene rubber material • Fiberglass framework •Nylon canvas tooth surface Application: It is widely used in various areas, from household articles to heavy engineering equipment, including the data storage devices, electric tools, postal equipments, food processing, office equipments, centrifugal machine, counting machines, diagnostic medical devices, sewing machines, ticket machines, robots, automatic trading machines and vacuum cleaners, etc. |
| Type | (mm) Pb | (mm) Ht | (mm) Hs | material | (mm) Standard Width | Length |
| 3M | 3 | 1.17 | 2.41 | rubber | 6/9/10/15 20/25/30 50/55/85 115/175 | 87mm~ 4200mm |
| 5M | 5 | 2.08 | 3.81 | |||
| 8M | 8 | 3.4 | 6 | |||
| 14M | 14 | 6 | 10 |
| 2.3 STS timing belts |
| |
| Features: • The power of Round STD tooth timing belt is enhanced 30% compared with that of the trapezoidal tooth belt. • High strength, good elasticity, high tensile stress. • Oil resistant, moisture proof, good adaptability to environment. • Lubrication-free and no need for further tension, low maintenance costs Materials: • Chloroprene rubber material • Fiberglass framework •Nylon canvas tooth surface Application: It is widely used in various areas, from household articles to heavy engineering equipment, including the data storage devices, electric tools, postal equipments, food processing, office equipments, centrifugal machine, counting machines, diagnostic medical devices, sewing machines, ticket machines, robots, automatic trading machines and vacuum cleaners, etc. |
|
