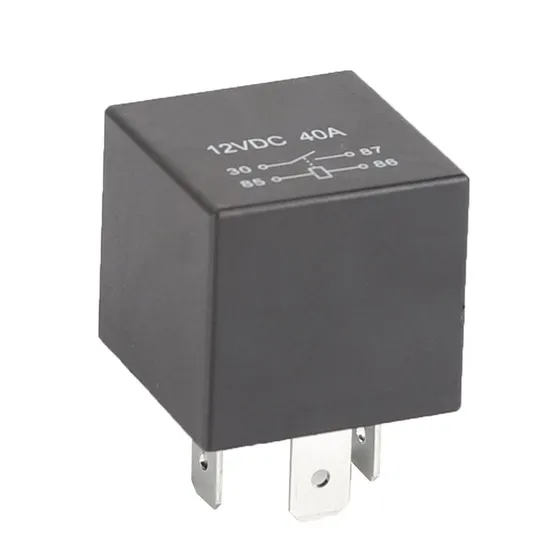

Customized Hot Products Auto Starter Relay OEM Relay Automotive Micro Electric Relays

Product Description

Product Parameters
*Main feature:
40A contact switching capability
A group of normally open, a group of conversion two contact forms
Various installation forms

Contact Specification
Contact Form	1A, 1B, 1C, 1U, 2A
Contact Material	AgSno2In
Max Operating Current	40A
Max Operating Voltage	27VDC
Rated Load	1A:40A 13.5VDC 20A 27VDC 1C:NO/NC 40A/30A 13.5VDC 20A/15A 27VDC
Insulation Resistance	100MΩ
Dielectric Strength	500VAC/M
Ambient Temperature	-40°C~+85°C
Operate/Release Time	≤10ms
Release Time	≤5ms
Mechanical Life	1 X106
Electrical Life	1 X105
Terminal Type	QC Terminal

	Coil Parameters
	Rated Voltage	Operate Voltage	Release Voltage	Coil Resistance	Parallel Resistance	Equivalent Resistance	Relay Power Consumption	Max Allowable Coil Voltage
								20 °C	85 °C
Standard	12	≤8.4	≥1.2	80	-	-	1.8	20.2	15.7
	12	≤8.4	≥1.2	80	680	71.6	2.0	20.2	15.7
	24	≤16.8	≥2.4	320	-	-	1.8	40.5	31.5
	24	≤16.8	≥2.4	320	2700	286	2.0	40.5	31.5
Low power	12	≤8.4	≥1.2	90	-	-	1.6	20.2	15.7
	12	≤8.4	≥1.2	90	680	79.5	1.8	20.2	15.7
	24	≤16.8	≥2.4	360	-	-	1.6	40.5	31.5
	24	≤16.8	≥2.4	360	2700	317.6	1.8	40.5	31.5

Remark: (1)In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm;Outline dimension>1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension>5mm,tolerance should be ±0.4mm. Production Process
Certifications
Our Advantages
ZHEJIANG GOODVIC ELECTRONIC CO, LTD is one of the leading industry professionals when it comes to automobile, magnetic latching relays and manganin shunts in Wenzhou China. We pride ourselves on research, development, handle production and sales on our own.
At Goodwin, we have passed ISO9001:2008 quality management system and ISO14001:2004 environmental management system certifications. These are among-st the national level of safety production standardization certifications. We have the international and national patent for our single phase and three phase latching relay, which we have researched and developed.The products have gone through the VDE and CQC security certification one at a time, and conforms to IEC62055-31, UC3, RoHS standards.
Goodwin's new plant is 10000 square meters in size, a staff of nearly 300, and this includes a strong professional R & D team with 10 dedicated people. The primary management and technical personnel all have between 5 and 10 years' experience of magnetic latching relay and Manganin shunt experience in the industry.We can produce more than 20 series, supported by three automated production lines and more than ten semi-automated or non-standard production lines, and have the capacity to produce 15 million pieces/year. The relay has a capacity of 12 million pieces/year, with a guaranteed high delivery security.
Packaging & Shipping
FAQ
1. Q: How about the payment terms?
Normally 30% deposit in advance. It can be discussed when we have friendly relationship.
2. How about Delivery time?
We can produce 50,000 pcs per month, large capacity. Normally, 15 days.
3. Q:Can I get a sample?
For sure, we are willing to supply samples free for quality checking.
4. Q : What's the price?
Reasonable price, competitive price, and acceptable prices, which are all based on good quality.
Any requirements or question,welcome to "Send" us an e-mail Now!!!TRated

---
