| Negotiable | 5 Pieces (MOQ) |
| RH560 Wireless data collector | |
| Input and output | |
| Communication protocol | 2.4GHz IEEE 802.15.4 |
| Number of RH505 connecting | 30~60 units according to real condition |
| Analysis Frequency(Hz) | 500/1K/2K/5K/10K/15K/20K |
| Number of Sample | 1K~128K (1K=1024) |
| Electrical and Structure Parameter | |
| Power Supply | 220V AC |
| Dimension (L * W * H) | 203 mm × 82 mm × 260 mm |
| Weight | 3 kg |
| Mounting | Hanging or fixation through holder |
| Environmental Parameter | |
| Working Temperature | -40~70 °C |
| IP grade | IP66 |

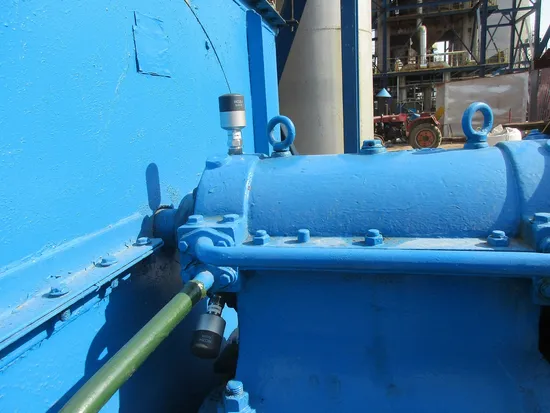

| RH505 Wireless Vibration and Temperature Integrated Sensor | |
| Vibration Measurement Parameter | |
| Vibration Range | ±50 g |
| Linearity | 1% |
| Frequency Response | 2Hz~15kHz (±3dB) |
| Analysis Frequency(Hz) | 500/1K/2K/5K/10K/15K/20K |
| Number of Sample | 1K~128K (1K=1024) |
| Sampling rate | Max. 51.2KHz |
| Measurement types | Overall value, FFT, time signal, Envelop FFT |
| Temperature Measurement Parameter | |
| Temperature Range | -40~125 °C |
| Temperature Accuracy | ±1 °C |
| Electrical and Structure Parameter | |
| Power Supply | Lithium - thionyl chloride battery, 3.6V, 3.3Ah |
| Communication Method | 2.4GHz IEEE 802.15.4 |
| Dimension | 46 mm × 94 mm (Diameter * Height) |
| Weight | 188 g |
| Environment Parameter | |
| Working Temperature | -40~70 °C |
| IP grade | IP67 |
