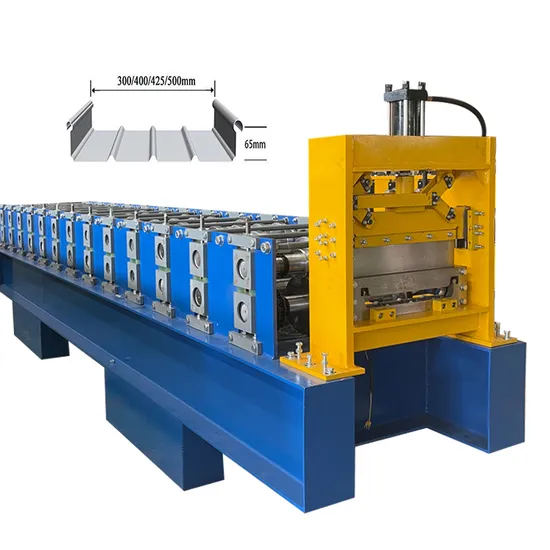

Aluminum Standing Seam Roof Panels Profiles Machine

Product Description

1. Factory Lifetime Service:offer technical support for the entire life of our machines.2. Customized Profile:can design the profile according to customer request.
3. One-Year Guarantee Period:supply the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.

Technical Advantages of Using XHH Standing Seam Forming Machine:
1. Smart body,available to fix in 20GP container,easy transport to the site2. Easy operation,low maintain cost

1.Roll Forming Machine (1) Material Thickness:0.3mm-0.8mm PPGI and GI (2) No.of Roller Stations:14 to 18 steps
(3) Materal for Rollers: high grade 45#steel polished and plated hard chrome
(4) Material for Shaft:40Cr
2.Cut-Off Device

(1) Material for Cut-off Modular:Cr12mov after treatment (2) Hardness for Heat Treatment:HRC60-62°
(3) Cut-off Type:Hydraulic Cut-off
(4) Motor for Hydraulic Stand:2.2KW
3.PLC Control Box
Type:PLC Frequency Control System with touch screen
4.Profile Drawing for YX65-300-400-425standing seam roofing300/400/425/500mm 65mm

5.Main Technical Data:
Size	YX65-425-500
Dimension	5800*1300*1550mm
Motor Power	5.5KW*2
Hydraulic Power	2.2KW
Forming Steps	13Steps
Forming Speed	8-14m/min
Voltage	380V/50HZ/3PH
Effective Width	400mm,425mm
Material Width	600-603 for 65/425 675-678 for 65/500
Height of Roofing	65mm
Aluminum Thickness	0.8-1.2mm
Galvanized Steel Thickness	0.7-0.9mm
Control System	PLC Control

Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.
