Small pipeline wood sawdust airflow dryer

Product Description

Product Description

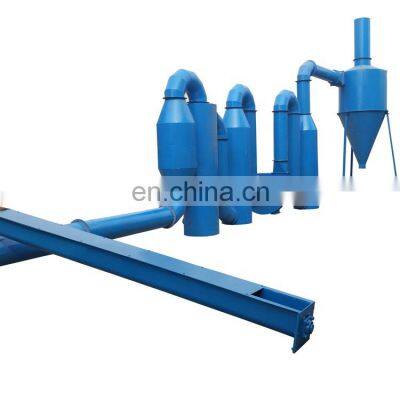

Small pipeline wood sawdust airflow dryer
Product Description
Introduction of Pipeline sawdust dryer:
Pipeline sawdust dryer, also called pipeline type drying machinery, adopting twice circulate heating system, is our newly developed advanced drying equipment, and show the features of automatic feeding, high hot airflow speed, fully mixing of airflow and materials, big drying strength, lower dust and bigger drying capacity. Moisture in the raw materials of less than 40% can be drying one time to meet the requirement for coal bar production, which greatly reduced the labor intensity compared with commonly used drier.
Structure of Pipeline sawdust dryer:
Available materials of Pipeline sawdust dryer:
Pipeline sawdust dryer is suitable for dry biomass materials, like: sawdust, rice husk, grass, straw and stalks, peanut shell powder, coconut shell and so on. But they should be less than 5mm or they need to be crushed.
Data of Pipeline sawdust dryer:
Model
QLH-1
QLH-350
QLH-400
Power
4kw
7.5kw
15kw
Capacity
200-400kg/h
600-800kg/h
1000-1200kg/h
Feeding size
Less than 5mm
Less than 5mm
Less than 5mm
Feeding moisture
Less than 30%
20%-50%
20%-70%
Output moisture
8%-12%
8%-12%
8%-12%
Dimension
8*1.5*3.5m
15*2.6*3.8m
16*2.6*4m

Specification of Pipeline sawdust dryer:
1. It is suitable for drying materials of moisture 20-70%.
2. It is suitable for drying materials like sawdust, rice hull, milling wheat straw, corn stalks and so on.
3. It is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone. Wet materials are input into the hopper.
4. The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock.
5. It reduces the moisture to 8-12%.
6. Clients can change the angle of dryer base on the production field.
7. It is only to control the moisture of raw material at a reasonable range that can make good result of biomass briquettes. Or the briquettes will be broken because of too loose or too dry.
Note: Capacity will depends on your material moisture.
The whole production line of Pipeline sawdust dryer:
Many customers came to visit our working factoty:
Packaging & Shipping
Package and details of Pipeline sawdust dryer:
1. Plastic film to wrap machine to avoid rust
2. Wood pallet/wooden case
3. Package it into shipping container directly
We had exported dryer to different countries: England, Bulgaria, Philippines, Malaysia, Indonesia, Thailand, Congo, India, Africa, Brazil, Chile and so on.
Our Services
Company Information
Gongyi Dongxing Machinery is a professional manufacturer of various machines. Our main products includes charcoal making machinery, pellet making machinery, Oil processing machinery, biomass drying equipment, Food drying equipment, Coal briquette machinery, Wood Crusher, etc. With 5 years exporting experience, we are now the leading supplier in middle China now, our products has been exported to more than 55 countries in the world. Clients profits go first is our principle. We have good faith in working with you and we are sure CANMAX team is one of your best Choices in China.
FAQ
FAQ of Pipeline sawdust dryer:
--- What kinds of materials can we use?
You can use almost all the agricultural wastes, like: sawdust, rice husk, stalk, straw, corn,etc.
--- What is the max feeding moisture?
We advise you use the materials 50%. Then it canbe dried to 8% one time. If the mositure is higher, the capacity is lower.
--- Can you provide us drawing paper to install machine?
Yes, of course. We can send you drawing how to install machine, how to build heating furnace.
Contact information of Pipeline sawdust dryer:
Welcome to visit our factory at any time. Our nearest airport is Zhengzhou airport. If you decide to visit us, we will help you to get visa, and we can pick you up at airport.
