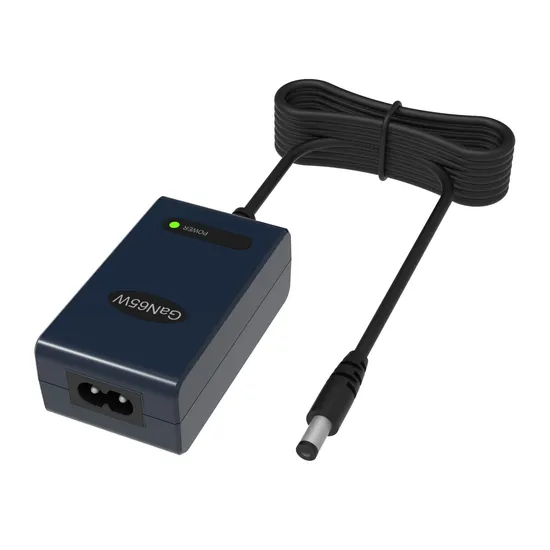

Compact Size 8.4V 12.6V 16.8V 21V 25.2V 29.4V 2A 3A 4A 5A 6A Lithium Ion Li-ion Lipo Battery Charger

Product Description

Product features:
GaN Based Power Supplies with Enhanced Digital Control, slim szie and hing effiency.
Intelligent charging programm for different battey type, like Li-Ion , LiFePO4 and Pb-Acid.
Suitable for 3 to 8 series Li-Ion / LiFePO4 batteries, 12V/24V Pb-Acid (SLA, VRLA, AGM, GEL).
Bi-Color LED to indicate charging process, RED charging, GREEN full charged
Multiple protections for overcurrent, overvoltage, and short circuit error.
Safety certifications, CCC, cTUVus, FCC, PSE, CE
Detailed technical indicators:
Rated input: 100~240V
Rated output: 10.8V~29.4V 50W, see the attached table for output voltage and current of each model
Suitable batteries: 10.8V~26.2V li-ion, LiFePO4 battery, 12V~24V lead-acid (VRLA, AGM, GEL) batteries
Charging process: "pre-charge + C.C. charge + C.V. charge + cut-off" 4 stages for Li-Ion/LiFePO4 type;
"pre-charge + C.C. charge + high C.V. charge + low C.V. charge" for Pb-Acid type.
Charging indication: Four segment green LEDs to indicate battery SOC (capacity level)
Erros protection: overcurrent, overvoltage, short circuit, battery reverse connection, etc
Power efficiency: 90% @ 220V full load output
Back Drain current: less than 1.5 mA (current flowing from battery to the charger when AC off)
Operating temperature: - 10~+40 ºC
Heat dissipation: natural cooling (without fan)
AC Input plug: AC inlet ICE-320-C8 type, AC cable / plug is optional part.
DC Output plug: standard DC terminal 5.5 * 2.5 * 12mm, output wire AWG18, length 1.5m
Safety certification: CE, ETL, FCC
Safety standards: GB/T13837; GB17625; GB8898; UL1310; EN60335; EN62233; EN55014; EN61000
Dimensions Weight: 73 x 43 x 28mm/100g
P/N of all GaN065-xxxyyy
Models for Li-Ion battery charger:

P/N	Charge Voltage	Charge Current	Cut-off current	Suitable battery
GaN065-126040	12.6V +-1%	4.0A +-7%	0.4A +-0.08A	3S Li-ion 4~40Ah
GaN065-168030	16.8V +-1%	3.0A +-7%	0.3A +-0.06A	4S Li-ion 3~30Ah
GaN065-210024	21.0V +-1%	2.4A +-7%	0.3A +-0.06A	5S Li-ion 2~24Ah
GaN065-252020	25.2V +-1%	2.0A +-7%	0.2A +-0.05A	6S Li-ion 2~20Ah
GaN065-294018	29.4V +-1%	1.8A +-7%	0.2A +-0.05A	7S Li-ion 2~18Ah

Models for LiFePO4 battery charger:

P/N	Charge Voltage	Charge Current	Cut-off current	Suitable battery
GaN065-144033	14.4V +-1%	3.3A +-7%	0.4A +-0.07A	4S LiFePO4 3~33Ah
GaN065-180029	18.0V +-1%	2.9A +-7%	0.3A +-0.06A	5S LiFePO4 3~29Ah
GaN065-216024	21.6V +-1%	2.4A +-7%	0.3A +-0.06A	6S LiFePO4 2~24Ah
GaN065-288018	28.8V +-1%	1.8A +-7%	0.2A +-0.06A	8S LiFePO4 2~18Ah

Models for Pb-Acid battery charger

P/N	Charge Voltage	Charge Current	Floating voltage	Suitable battery
GaN065-138033	14.5V +-1%	3.3A +-7%	13.8V +-1%	12V Pb-Acid 12~ 40Ah
GaN065-276018	29.0V +-1%	1.8A +-7%	27.6V +-1%	24V Pb-Acid 7~20Ah

---
