Hot Sale Stainless Steel Solar Collector

Product Description

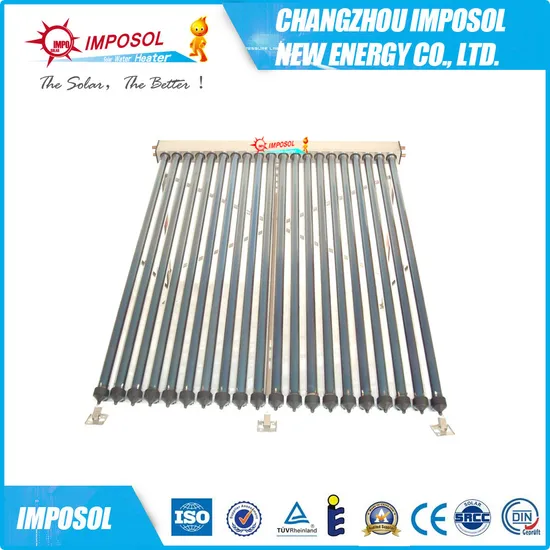

Vacuum tube solar collector /Heat pipe solar collector/solar collector
Re Ba series is solar collcetor with aluminum-alloy outer shell (100*120mm), and internal copper-pipe
1. Outer board: Aluminum-alloy, thickness 2.0mm
2. Internal bladder: Cooper pipe (φ 35*1)
3. Temperature-warmth layer: Mineral wool
4. Bracket: Stainless steel, thickness 1.2mm
5. Vacuum tube: Transition heat-pipe tube(1500mm, 47mm and 1800mm, 58mm, inside 0.5mm copper tube)
6. Hail resistance: 25mm
Detailed Product Description
1) solar collector is designed with pressure up to 0.6Mpa.
2) Easy to use, also convenient to install
3) Can be put in the courtyard, on the roof or balcony
4) Inlet water hole connects to the tap water, and the outlet hole connects to the tap water, and the outlet hole produces pressure hot water directly
5)Efficiency: The advantage of solar tubes is that insulate the inner tube from heat loss. This means that once heat is absorbed, it is transferred to the water in the manifold, and not lost to the outside environment. This is the key difference between solar tubes and flat plate solar collectors: The insulative properties. Combined with heat transfer efficiency of the heat pipe, the collector can deliver excellent heat output all year round.
5)Aesthetics: Solar collector is designed to be low profile, sitting closed to the surface of the roof. Tubes are black and so blend in nicely with most roof colors.
6) Heat pipe has its special principle and function, and no water in the pipe. If one of the pipe is broken, the heat collector still could be used normally. Therefore, this kind of products has gradually accepted by consumers. However, every coin has two sides. The product also has its disadvantages.

ReBa Series	Manifold
	Type Parameter	Aluminium alloy Manifold	Stainless Steel Manifold
	Material	Aluminium Alloy(2.5mm)	Stainless Steel (304/2B or other )
	Insulation	Rock wool	Rock wool
	Manifold pipe	Copper (φ35*1)	Copper (φ35*1)
	Color	Freedom of choice
	Remark:1.Aluminum alloy manifold adopt integrated lock design. 2. Working pressure:0.6Mpa,Test pressure:1.0Mpa
	Aacuum tube(Transition heat-pipe tube)
	Type Parameter	Diameter=47mm	Diameter=58mm
	Material	High Borosilicate glass	High Borosilicate glass
	Thickness	1.6-2.0mm	1.6-2.0mm
	Length	1.5m	1.8m
	Color	Black/Blue	Black/Blue
	Heat pipe	Copper 0.6mm	Copper 0.6mm
	Remark:1.Borosilicate glass according to ISO3585:1991; transmittance of borosilicate glass:0.92. 2.Absorbance of solar selective absorptive coating:0.94 3.Hemispherical emittance:0.08; 4.Getter according to GB/T9505-1998
	Frame
	Type Parameter	Aluminium Alloy	Stainless Steel
	Material	Aluminium Alloy	Stainless Steel
	Thickness	2.5mm	0.7mm
	Color	Freedom of choice
	Remark:1.Collector Mounting: Flat Roof/Inclined Roof from 18 degree to 45 degree 2.adjust bracket width ,easy to assemble

---
