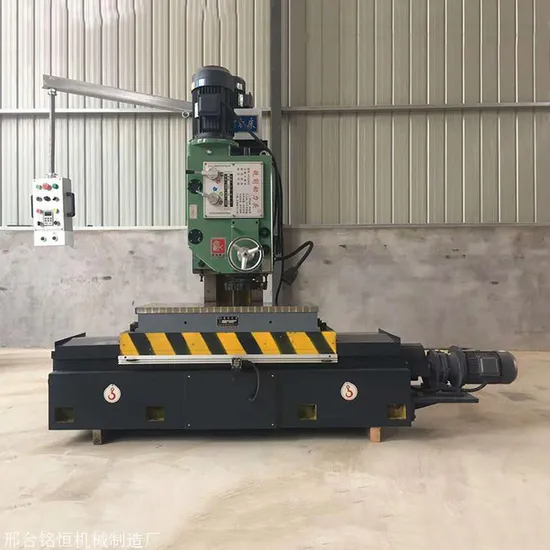

Vertical and Horizontal CNC Plane Milling Machine with Drilling and Milling Function

Product Description

Face milling machine Single column milling machine has a wide processing range and is suitable for end face cutting of metal materials such as castings and steel parts. It is widely used in machinery manufacturing.
It is especially suitable for the plane milling of the mold industry and the plastic mold frame frame.
It can process the special surface of milling, drilling and boring on both ends of the long workpiece.
Product Parameters

Specification		Unit	XD2010		XD3010
Table travel		mm	2000		3000
Milling head vertical stroke		mm	1000
Table size	Length	mm	2200		3200
	Width	mm	800
	No. of T-slots	mm	5
	Width of T-slots	mm	22
Table feed speed	Feed	mm/min	Frequency
	Rapid travel	mm/min	Frequency
Spindle taper			7:24, ISO50
Spindle speed step		r/min	75/105/150/210/300/420
spindle swivel angle			±35°
Milling head travel		mm	350
Power of spindle motor		kw	7.5
Power of table motor		kw	4.0
Milling head vertical motor power		Kw	1.1
Dimensions		mm	3700*2350*2100		5200*2350*2100
weight		Kg	4300		5500

About Us

Certificate display

Visiting customers

Why Choose Us

Packaging & Shipping

FAQ

1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2. Can we pay by L/C or others ?
Yes ,you can make the payment by T/T , l/C etc.
3. What is your payment terms ?
30% down-payment after contract ,and 70% payment before shipment,
Meanwhite it can be discussed according to your situation.
4.When is the delivery time?
The delivery depends on different machines with different configurations.
Please contact us to confirm it is in stock or not.
5. How to handle the warranty period?
During the warranty period, we will provide free replacement parts (EXW)
which are easy damaged.
If the machine problem is not belonging to our machine quality problems,
when the buyer needs us send engineers to give repairing service, we charge
the appropriate cost.
6.Can your company send the technical personnel to our company and direct our workers for free?
When the machine arrive the buyer's installation site, we timely send mechanical and electrical
engineers to install according to the buyer's schedule, the buyer undertakes board and lodging
of personnel abroad in the process of installation, and also USD50.00-100.00 per day per person.
The seller will cooperate with the buyer to deal with visa and installation preparation before
going abroad.

---
