X5036A High-Quality Vertical Knee-Type Universal Milling Machine

Product Description

X5036A High-Quality Vertical Knee-Type Universal Milling Machine

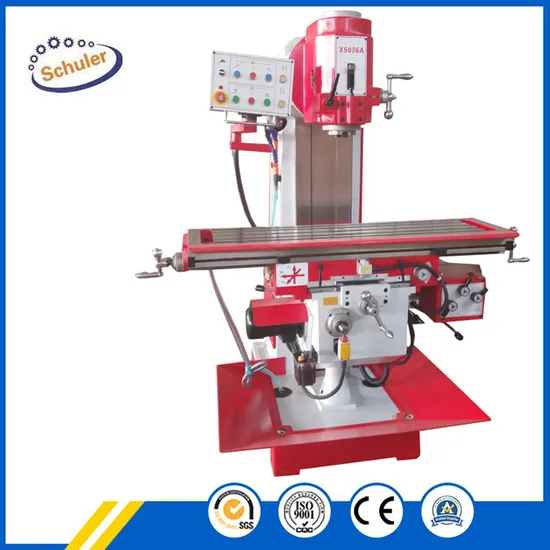

Product Picture:
Erformance:
·Powerful Tool Milling Machines;
· Milling machine for tool construction;
· Automatic feeds on all 3 axes;
· Outer arbor supporting for horizontal milling;
· Heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity;
· Steamlined arrangement of operating controls on the right side;
· Vertical head quill for drilling, with hand lever feed;
· Quill stroke 80mm;
· Central lubrication;
· Hardened guideways;
· The milling machine can be enquipped with Digital Position Indicator.
Standard Accessories:
· Complete tool
· Cutter arbor (dia.Φ16,22,27,32mm)
· Reducing sleeves (Morse1,2,3)
· Spring collect (dia.Φ2,3,4,5,6,8,10,12mm)
Optional Accessories:
· Dividing head
· Machine vice
· Universal angluar table
· Rotary table
· Boring head
· 3-axis digital position indicator
Universal Milling Machine Technical Parameters:

Specifications	Unit	X5036A
Table size	mm	1600×360
Table travel (X/Y/Z)	mm	1300/320/450
Spindle travel	mm	70
Spindle taper		7: 24 ISO50
Distance from spindle center to column surface	mm	360
Distance between spindle nose and table surface	mm	50-500
Swivel angle of vertical milling head		±30°
Spindle speed range/step	r.m.p	50-1475
Cutting feed speed(X/Y)	mm/min	8step: 22-555(fast830)
Vertical lift speed of worktable	mm/min	11-275
T-type slot numbers / width /space	mm	3-18-80
Max. load of table	kg	700
Feed motor power	W	750
Lifting motor power	KW	1.1
Motor power	KW	5.5
Overall dimensions	mm	2520×2100×2150
Machine weight	Kg	2900

Brand Image:
As a professional manufacturer of milling machines, we want our customers to know of our commitment to providing the latest products to all customers.
Universal Milling Machine Details:
Universal Milling Machine Package Delivery:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
If any questions pls feel free to contact me
Contact information :
Edwin
Tel:+86 18663288651

---
