Three-Phase Automatic Voltage Regulator AC380V

Product Description

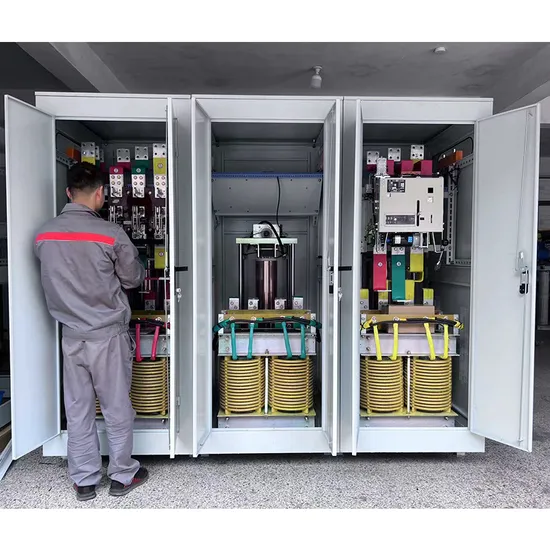

SBW-H-180KVA Series 30K~2000kVA 3phase Industrial-Grade Compensated Voltage Stabilizer/Regulator
Overview
SBW series three phase full automatic compensated power voltage stabilizer applicant to when the power network fluctuates or the load current varies, it can keep output voltage in steady state automatically, compared with other voltage stabilizers, it has the advantage of large capacity, high efficiency, no wave distortion, stable voltage adjustment, suitability for kinds of loads,bearing instantaneous overload, working continually for long time, as well as free transferring between manual control and automatic control etc., besides, it is provided with protection against over-voltage, over current, phase failure/ phase sequence, delay and error protection etc, and has following merits: small volume, light weight, convenient installation and relit is reliable running and so on.
Application
It is widely used in post and telecommunications, department stores, elevators, hospitals, schools, pringtng, securities and other
occasions where all needs normal voltage to ensure, such as workshop, mines, medium enterprises, some of the important
equipment and computer power and support.
TECHNICAL PARAMETERS:

No.	Item Name	Item Description
1	OUTPUT VOLTAGE	380V ±20% ±25% ±30%
2	WORKING FREQUENCY	50 / 60Hz
3	REGULATION MODE	Simultaneous phase regulation
4	CONSTANT VOLTAGE PRECISION	±(1~5%) adjustable
5	NOISE	55 dB
6	INSULATION CLASS	F
7	OPERATION TIME	≥ 100,000 hours
8	PROTECTION CLASS	IP 20
9	VOLTAGE WITHSTANDING	2000V, 1min. Not broken
10	WAVE DEFORMATION / DISTORTION	≤ 0.1%
11	EFFICIENCY	≥ 98%
12	INSULATION RESISTANCE (MΩ)	≥ 5MΩ
13	RESPONSE TIME (ms)	≤ 100ms
14	TIME FOR STABILIZING	When the input voltage jumps 10% relative to the rated value, the stabilizing time is less than 1.5s.
15	PACKING	Plywood packing
16	ALTITUDE	< 2000m
17	RELATIVE HUMIDITY	< 90%
18	AMBIENT TEMPERATURE (ºC)	-15ºC to +45ºC
19	COOLING METHOD	Forced air cooling with fan
20	ANTI-SURGE PERFORMANCE	The input terminal is equipped with a high-energy surge impulse suppressor, which effectively solves the fatal impact of the pulse spike voltage between 10μs and 100μs, such as lightning induction in the equipment.

---
