New Style Flange Compression Fittings Irrigation Double Saddle with Single or Double Output

Product Description

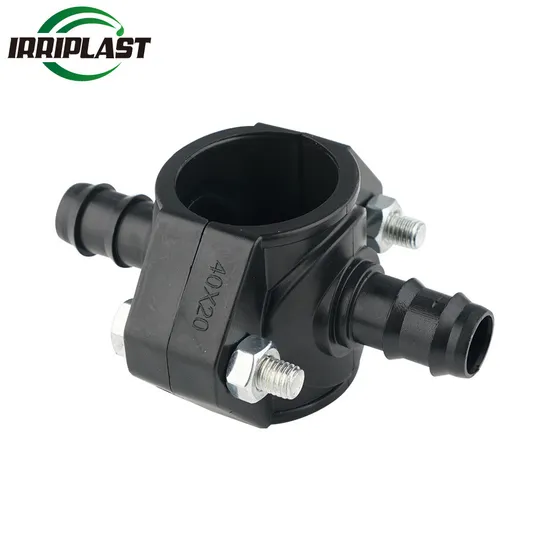

New Style Flange Compression Fittings Irrigation Double Saddle with Single or Double Output
Product Description
The clamp saddle line has been produced from high quality raw material and it has resistance to impact. It has been designed of side outputs on Polyethelene pipes(PE) and it is available in the following range of sizes: Item 4001/4002/4003/4004 with single or double output. They have diameters for the coupling with 20mm to 315mm pipes and threaded outputs(1/2 to 2), provided with 2 and 4 bolts according to the diameters.
Technical data

Parts	Material
Body and cover (A)	Black mastered polypropylene copolymer, with a high level of stabilization to UV
Gasket (B)	Acrilonitrile elastomeric Rubber(NBR)
Reinforcing ring (C)	Metal ring for female threaded from 1/2'' to 2''
Bolts (D)	Chromiun-plated galvanized steel screws and nuts

Description	Code	Size	Weight (g/pc)	PCS/BAG	PCS/CTN	Bolt&Nuts Number	Carton size
Irrigation Double Saddle	4010	32*16	64	20	200	2	48*38*38cm
		32*20	64	20	200	2	48*38*38cm
		40*16	94	10	200	4	48*38*38cm
		40*20	99	10	200	4	48*38*38cm
		40*25	99	10	200	4	48*38*38cm
		50*16	196	8	120	4	48*38*38cm
		50*20	194	8	120	4	48*38*38cm
		50*25	197	8	120	4	48*38*38cm
		63*16	204	5	100	4	48*38*38cm
		63*20	209	5	100	4	48*38*38cm
		63*25	210	5	100	4	48*38*38cm

Sanitary Prescripyions
The clamp saddle line is fit for conveying food fluids because its materials are conform to the national and international standard in force.
Working pressure
The clamp saddle line allows a maximum working pressure from 4 to 16 bar, at temperature of 20 ºC. Reference Standard
Pipes: UNI7990, DIN8074, UNI EN12201
Threads: UNI ISO7/1, UNI ISO228/1, ANSI ASME B1-20.1
International standard: ISO 13460
Application
1. Structure Engineering
2. Water supply system
3. for Agriculture Irrigation Main Products
View more products,you can click products keywords...

PPR Pipe	PPR Fitting
PP Union Ball Valve	PP Compression Fitting
Clamp Saddle	Solenoid Valve
Sprinkler	PVC Ball Valves

Company Profile
OTHER DETAIL SERVICES FOR YOU
1.Any inquiries will be replied within 24 hours.
2.Professional manufacturer.
3.OEM is available.
4.High quality, standard designs,reasonable&competitive price,fast lead time.
5.Faster delivery: Sample will be prepared in 2-3 days.
6.Shipping: We have strong cooperation with DHL,TNT,UPS,MSK,China Shipping,etc.
FAQ
1.What is your MOQ?
Our MOQ is usually 5 CTNS for size from 20-50mm.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is your payment terms?
We accept 30% T/T in advance,70% before shipment .or 100% L/C.
4.What is the shipping port?
We ship the goods to Ningbo or Shanghai port.
5.What is the address of your company?
Our company is located in the Yuyao, ningbo Zhejiang Province,China.You are welcomed to visit our factory.
6.How about the samples?
we could send you the samples for free, and you need to pay the courier fee.
If there are too much samples, then you also need to undertake the sample fee.

---
