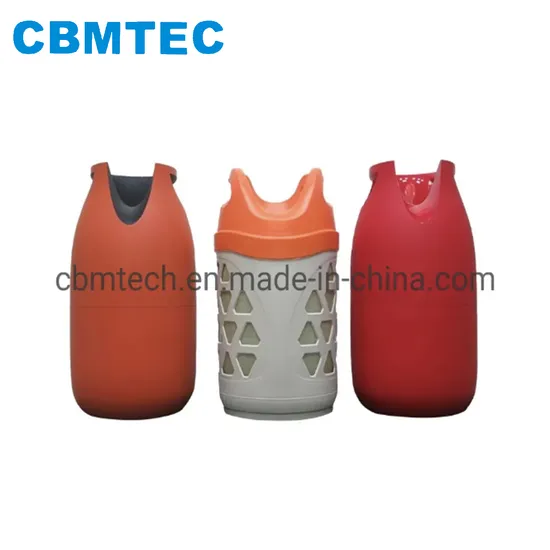

New Type Composite Material LPG Cylinders

Product Description

Household 12.5KgLPG Composite Cylinders:

Standard	ISO4706, ISO9001:2008, CE,NIS 69, DOT 4BA, PNS 03-1, AS 2469.....
Material	HP295 hot rolled steel
Test Pressure	30Bar
Work Pressure	18Bar,
Blasting Pressure	60Bar
Wall Thickness	≥2.5mm
Tare weight	13.5kgs
Valve	Optional
Relevant Products	Low pressure regulator, PVC hose, gas stove, Cast iron stove

General Product Information on CBMTECH LPG Composite Cylinders
Max Filling Quality (KG)	Water Capacity(L)	Cylinder Body Dimension			Shield Dimension			Base Ring Dimension
		Diameter (mm)	Nominal Thickness (mm)	High	Diameter (mm)	Height (mm)	Thickness (mm)	Diameter (mm)	Height (mm)	Thickness (mm)
LPG-3KG	7.3	210	2.0	264	160	120	2.5	190	35	2.5
LPG-5KG	12.0	250	2.3	310	160	120	2.5	190	35	2.5
LPG-6KG	14.4	300	2.3	268	272	65	2.3	303	62	2.3
LPG-10KG	24.0	310	2.5	392	170	125	2.5	233	40	2.5
LPG-12.5KG	26.2	300	2.75	452	230	145	2.3	303	62	2.3
LPG-15KG	35.5	320	2.95	524	190	153	3.25	240	53	3.25
LPG-20KG	48.0	300	2.75	770	190	153	3.25	303	62	2.3
LPG-50KG	118.0	406.8	3.4	1024	240	150	3.25	400	120	3.4

Details Images:
*About Us:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.*Advantages We Have:-1).Original Manuacturer: Being a professional manufacturer, we have professional equipments for our manufactureing products, including Punch Machines, CNC Machines, and etc.;-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;
-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of factory;-4)Cost Advantages: We have cost advantage because our professional and scale economy;-5)Series: We have different series and models, for different standards in different countries;-6)Small order can be acceptable: M. O. Q. =50PCS;-7)Exporting experience: We have over 5 years' experience for exporting.*NOTES:-a). Various types of HP gas cylinders,cylinder valves,cylinder caps,valve guards can be optional; -b).We have many advantages of satisfying our potential customers' MIXED needs of different sizes of HP steel gas(O2/Helium/Argon/CO2/N2) cylinders raning from 0.2L~68L @15Mpa/20Mpa & ISO3807-1/2 Dissolved Acetylene Cylinders(2L~60L).
Anyway,should you have any intersts or some more info needed on our acetylene gas cylinders & allied gas items(gas cylinder valves,gas regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
Key Contact: Ethan Liu (Exp. Mgr)

URL: http://cbmtech.en.made-in-china.com ; http://cbmtech.en.made-in-china.com

---
