Silicon Polyurethane Sealant Viscous Liquid Vacuum Lift Double Planetary Mixer Machine

Product Description

Product Description Product Description :

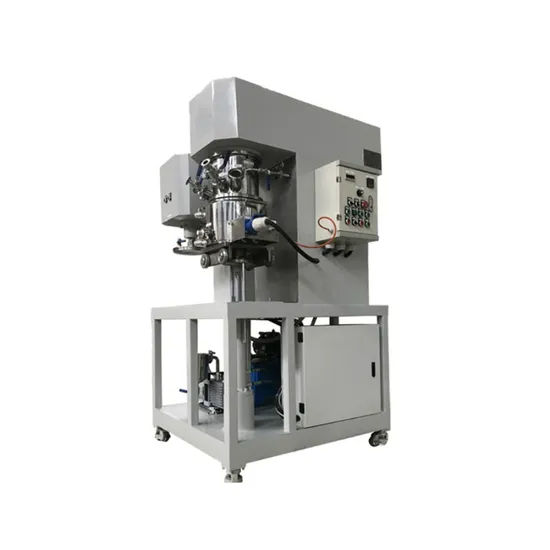

Lab Double Planetary Mixer is new and high efficient mixing equipment designed for universities, research institute and factory lab. The machine consists of low speed agitator and a high speed disperser, has good mixing, reacting, dispersing, dissolving effect, especially suitable for the dispersing and mixing of solid-liquid, liquid-liquid phase; It's quite fit for high viscosity product such as adhesives, silicone, Lithium battery slurry etc. due to its super strong output torque; The equipment has scraper which can scrape the bottom of the tank without dead corner or residue; also there are extrusion device and sliding rail to work together with this machine, so that realizing the integrated operation of mixing and discharging.
* High mixing efficiency, wide application The Dual Planetary Mixer has two sets of agitators and a set of high speed dispersing shaft revolving around the container axle and at the same time rotating at high speed, so that the materials are mixed rapidly under the action of strong shearing and kneading force. Various agitators (blade type, twist type, claw type, frame type etc) are in option based on materials with different viscosity and different specific gravity. * Safe and convenient operation Adopt hydraulic cylinder as lifting actuators. Control the mixer up, stop and down through controlling the valve, simple operation with high stability; with barrel holding device for fixing the tank rapidly to prevent any possible accident due to tank displacement. There is sliding rail device between the mixing and extruding tank, convenient for moving tanks, realizing the integrated operation of mixing and discharging. * No residue on the wall, clean discharging There is scraper on the planetary frame rotating together with the planetary frame, it clings to the container and scrape the materials on the wall off continuously. The container inner wall is precisely lathed and then mirror polished to ensure the scraper can scrape all materials sticking to the wall off without residue, increasing the mixing effect. * Customized options Different options are available such as explosion-proof type, closed type, heating type, with PLC intelligent control type, etc..Material can be customized to be SS316L or special Spraying materials.
Applicable material:
Various sauces with material viscosity below 4,000,000 CPS and solid content below 90%; such as battery paste, automotive sealant, solar cell paste, solder paste, ceramic paste, glass glue, silicone ink, sealant, structure Glue, soft ointment, potting gel, hot melt, white latex, anaerobic adhesive, hardening adhesive, polyurethane adhesive, epoxy adhesive, organic silicone, conductive adhesive, architectural adhesive, silicone adhesive, tunnel waterproof adhesive, etc.

Application area:
Suitable for coatings, paints, graphene, aluminum paste, resins, masonry, putty, inks, adhesives, greases, lubricants, new energy, electronics, cosmetics. Lithium battery, dental materials, composite materials, solder paste, automotive sealant, adhesive, polymer materials, and other industrial products, dispersion, mixing; production capacity 2L-3000L.
Product Parameters

Cylinder volume	Feeding volume	Mixing power	Revolution speed	Rotational speed	Lift	hydraulic power	Vacuum pump power	Dimension
(L)	(L)	(kw)	(pm)	(pm)	(mm)	(kw)	(kw)	(L×W×H)
3	2	0.75	0-65	0-110	200	0.55	0.37	900×1100×1950mm
8	5	1.5	0-65	0-180	250	0.55	0.37	1200×1100×1900mm
17	10	2.2	0-65	0-180	350	0.75	0.37	1200×1300×2200mm
27	20	3	0-65	0-145	400	1.5	0.55	1700×830×1700mm
43	30	4	0-65	0-145	400	1.5	0.55	1750×800×2000mm
68	50	5.5	0-60	0-140	500	1.5	1.5	1750×1000×2100mm
140	100	11	0-40	0-95	600	2.2	1.5	1300×2000×2550mm
280	200	15	0-40	0-95	800	2.2	2.2	1500×2300×3100mm
310	250	18.5	0-40	0-95	800	3	2.2	1600×2300×3200mm
400	300	22	0-30	0-95	850	3	2.2	1800×3000×3650mm
500	400	30	0-30	0-65	900	4	3	1950×2500×3700mm
660	500	37	0-30	0-70	1000	5.5	3	2100×3200×4100mm
1070	800	37	0-30	0-65	1100	5.5	4	2200×3400×4100mm
1300	1000	45	0-30	0-55	1200	7.5	5.5	2400×3700×4600mm
1500	1200	55	0-30	0-55	1300	11	5.5	3050×4100×4700mm
2300	2000	75	0-20	0-35	1500	15	7.5	4000×2300×6500mm
3820	3000	90	0-15	25	1700	18.5	11	4500×2500×7200mm

Recommended for you
Company Profile
What we provide:
Higao Tech Provide professional grinding pulverizer machines, powder mixing machines, vibrating screening machines, granulating machines, drying equipment, conveying equipment, puffed snack food production line, food snacks processing equipment, scrap rubber tire recycle equipment, waste tire recycling rubber powder production plant, rubber crumb recycling equipment, nutritional breakfast producing line, various customized turnkey systems, powder engineering turnkey system projects used in food, pharmaceutical, chemical, tire recycle, plastic, mineral, ceramic industries, etc.
Packaging & Shipping
FAQ 1. How can I know your quality?
Our company is famuous in our industry. We have more than 20 years history. The best way to know the quality is comparison. You can come to our factory for on-the-spot investigation. You are welcome.
2. Can you supply sample test?
Of course our company can supply sample test before buying. And record the testing result and send to you by pictures or video.
3. What is your delivery time if I place order?
Usually 30~60 days. It depends on the machine itself, our actual order status.
4. Can you supply installation and commissioning service abroad when we received our equipment?
Yes, our company can send our engineers to your local workshop to guide installation and commissioning and training your operators.
5. How to operate and maintain the machine?
We will give you operation manual, drawing, circuit diagram spare parts list, etc after shipping.
6. What should I do if we can not solve the problems some times?
You just need to send email or make a call to us. We will reply within 12 hours and analyse the problems with you. Find the reason and find the way.
If we can not solve by communication after trying several ways, we can send our engineer to your place if you need.
7. What is your warranty period?
We supply one year warranty and life time after sales service for our euqipment.
