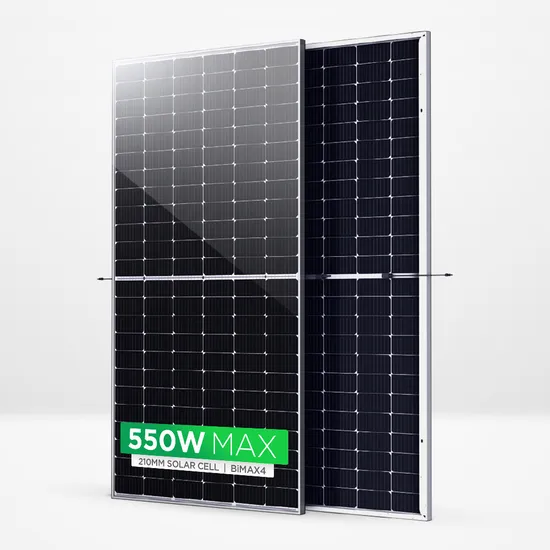

1868 Alicosolar Bifacial Solar Panel 500W 510W 520W Dual Glass Solar PV Module Mono 530W 540W 550W 560W 600W Half Cell 166mm

Product Description

Product Description

ELECTRICAL PARAMETERS
Module	AS530MB-72H	AS535MB-72H	AS540MB-72H	AS545MB-72H	AS550MB-72H
Peak Power Watts(Pmax/W)	530	535	540	545	550
Power Output Tolerance(W)	0 ~ +5W
Maximum Power Voltage(Vmp/V)	31.0	31.2	31.4	31.6	31.8
Maximum Power Current(Imp/A)	17.11	17.16	17.21	17.24	17.29
Open Circuit Voltage(Voc/V)	37.3	37.5	37.7	37.9	38.1
Short Circuit Current(Isc/A)	18.19	18.24	18.30	18.35	18.39
Module Efficiency(%)	20.30	20.50	20.70	20.90	21.00
Temperature Coefficient of ISC(α-Isc)	0.04%/ºC
Temperature Coefficient of Voc(β-Voc)	-0.25%/ºC
Temperature Coefficient of Pmax(γ-Pmp)	-0.34%/ºC
STC	Irradiance 1000W/m² ,cell temperature 25ºC,AM1.5G

STC:Irradiance 1000W/m2,Cell Temperature 25°C,Air Mass AM1.5.
*Measuring Tolerance: ±3%.

ELECTRICAL CHARACTERISTICS WITH DIFFERENT REAR SIDE POWER GAIN
Backside Power Gain	10%	10%	10%	10%	10%
Peak Power Watts(Pmax/W)	567	573	578	583	589
Maximum Power Voltage(Vmp/V)	37.3	37.5	37.7	37.9	38.1
Maximum Power Current(Imp/A)	19.46	19.52	19.58	19.63	19.68
Open Circuit Voltage(Voc/V)	37.3	37.5	37.7	37.9	38.1
Short Circuit Current(Isc/A)	18.31	18.36	18.41	18.45	18.50

Detailed Photos
Why Choose Us - QC100% Cells SortingEnsure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
100% "Zero"Defects Objective Before Shipment.
Most stringent acceptance criteria and tightest tolerance,
Ensure the best modules on the market- guaranteed!
100% Optimal TestingEnsure 3% Positive Power Tolerance
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow constantly.
