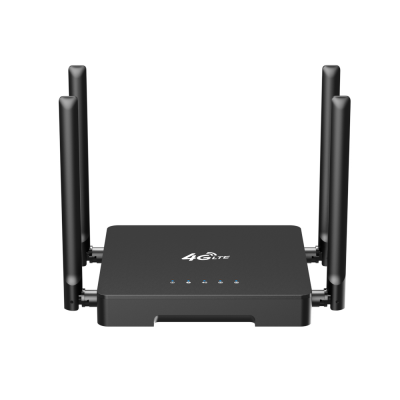

| Description | 1 wan port 2 lan ports 2.4G wifi Cat 4 best 4g wifi router |
| Item no. | HY8625 |
| Chipset | MT7628DA, L716-EU-12 |
| CPU Frequency | 580MHz |
| Memory | 64MB |
| Flash | 16MB |
| WIFI | High-Power |
| LTE | DL 150Mbps; UL 50Mbps |
| Device Interfaces | 1 x Nano SIM Card Slot |
| 2 x RJ45 10M/100M LAN Ethernet Port | |
| 1 x RJ45 10M/100M WAN Ethernet Port | |
| 1 x Reset Button | |
| 1 x DC Port | |
| 1 x Type-C Port | |
| WIFI Antenna | 2 x 5dBi External Antenna |
| LTE Antenna | 2 x 5dBi External Antenna |
| Power Supply | DC 12V/1A, Type-C 5V/2A |
| 4G Frequency | FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 TDD: B38/B40 WCDMA: B1/B2/B5/B8 Frequency can be customized |
| Wifi Standard | IEEE802.11b/g/n, (WiFi4) 11N:300Mbps, 2.4~2.4835GHz |
| Modulation Schemes | OFDM = BPSK,QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
| Transfer Rate | HT20: up to 144 Mbps HT40: up to 300 Mbps |
| WAN Type | 4G/3G/2G or Wired |
| 4G/3G Features | Auto-APN |
| Auto dial-up | |
| Roaming | |
| SMS(Send/Receive/Delete) | |
| USSD | |
| PIN Management | |
| Wi-Fi | SSID, Broadcast and Hide Wi-Fi Name |
| WEP, WPA-PSK, WPA2-PSK, WPA/WPA2,WPA3 | |
| WiFi Frequency, Channel, Bandwidth | |
| MAC IP Address Blacklist and Whitelist | |
| Firewall | NAT(DMZ, UPNP) |
| telnet, ping, http | |
| Defense Dos Attacks | |
| User Define to Prevent Attacks | |
| Management | User Access Restrictions |
| URL Filter | |
| QOS speed limit | |
| System Log | |
| System Settings | |
| Traffic Statistics of Wireless and Ethernet Networks | |
| Ping or Traceroute to Check the Network Working Status | |
| Iperf Speed Test | |
| IPV4/IPV6 | |
| Upgrade Firmware from Local | |
| Operating Environment | Operating Temperature:Normal:0°C to +45°C; Operating Temperature:-20° C to +70° C Operating Humidity:5%~ 95% Storage Humidity:5%~ 95% |
| Dimension | Device: 310*230*41mm CTN size: 48.8*43.8*33.5 CM, 20pc/ctn G.W.: 11.72 KGS |
