Vertical Machining Center Vmc CNC Machine Tool with Excellent Circular Accuracy

Product Description

Main Features

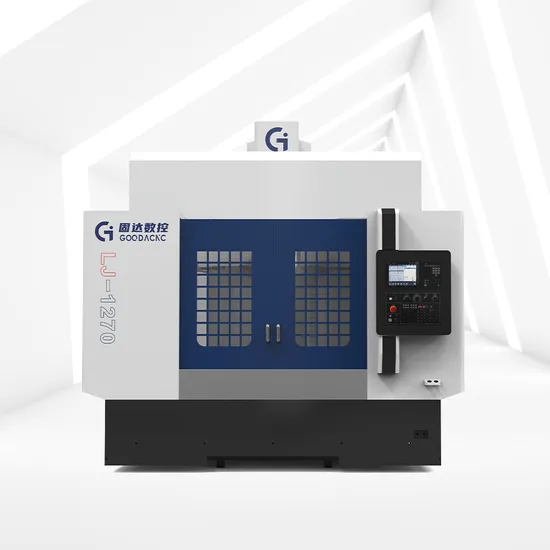

GooDa Vertical Machining Center with Dual Tool Magazine LJ-1270B-2T:
Ingeniously designed with two linear and one hard rail, or an option of three linear rails, this machine boasts an innovative operation mode featuring a dual tool magazine. This configuration ensures a seamless and efficient performance for all your machining tasks.
The Dynamic 3 Axis Vmc CNC Machine not only excels in high-efficiency machining for standard panel components but stands out as an exceptional choice for intricate and complex workpieces, delivering precision and reliability every time.
Main Functions
- Multi fixtures for small-batch machining
- Dual tool magazine - 64 tools: enhancing versatility and reducing setup time.
- THK linear rails and ball screws: for precision movement and unrivaled durability.
- Anti-collision tool setter: safeguarding your investment with every operation.
- User-friendly, Programming-free tandem operation
- Quick clamping
- High efficiency and speed
- Taiwan brand spindle

Product Parameters

Model	LJ-1270B-2T
Category	Attribute	Value	Unit
Worktable	Worktable Size	1300×700	mm
	Max load capacity	800	kg
	Number of T-slots - Slot Width × Spacing	5 slots - 18×100	mm
Travel	Three-axis Travel (X/Y/Z)	1200/700/680	mm
	Spindle Nose to Table Distance	120~820	mm
Spindle	Spindle Taper	BT40#	-
	Spindle Motor Power	7.5/11	Kw
	Spindle Drive Method	Belt Drive (Optional: Direct Drive)	-
	Max Spindle Speed	8000 (Optional Direct Drive: 12000)	rpm
Feed	Rapid Traverse Speed (X/Y/Z)	24/24/16	mm
	Cutting Speed (X/Y/Z)	1~12000	mm/min
Tool Magazine	Number of Tools	2×32T Robot Arm	T
	Max Tool Weight	8	kg
Accuracy	Positioning Accuracy (X/Y/Z)	±0.005/300	mm
	Repeat Positioning Accuracy (X/Y/Z)	±0.003/300	mm
Other	Electrical Capacity	25	KVA
	Overall Dimensions (L×W×H)	3.1×3.0×3.0	m
	Weight (Approx.)	7000	kg

Our dedicated team of experts is committed to guiding you in selecting the machine that perfectly aligns with your specific processing requirements, ensuring unparalleled satisfaction and productivity. Get Expert Assistance Now! Examples of Processed Parts
Quality Control
Roughness measurement of the table surface using a state-of-the-art roughness tester, ensuring pristine finishes and superior quality output.
Spindle dynamic balancing test ensures precision processing accuracy, maintaining the high standards expected from our machines.
Spindle pull force testing to accurately measure spindle tension, guaranteeing optimal performance and safety.
All machines must pass a comprehensive coordinate measuring machine (CMM) inspection, ensuring absolute precision and quality before leaving the factory, ready to exceed your expectations.
Company Profile
Factory Display

Certifications

FAQ
Q1. What is your minimum order quantity and warranty?
A1: MOQ is one set, and the warranty is 12 months.
Q2. What CNC system do you use?
A2: FANUC, SIEMENS, MISTSUBISHI, etc. It depends on your choice.
Q3. When is the delivery time?
A3: For conventional machines, we will deliver them within 30-45 working days after receiving your deposit; For special machines, the delivery time may be longer, and we will provide you with an updated timeline accordingly.
Q4. What is the packaging for the machines?
A4: Packaging: PE bag cover (inside), plywood box, and steel beam frame. Other packing methods are also available.
Q5. How can I select the most suitable machine?
A5: Please let us know your machining requirements or the machine size, and we can recommend the best model for you.
Alternatively, you can choose the exact model yourself. You can also provide us with the product drawings, and we will help you select the most appropriate machine.
Q6. What are your trade terms?
A6: FOB, CFR, CIF, or other terms are all acceptable.
Q7. What are your payment terms?
A7: We accept T/T with a 30% deposit when placing the order and the remaining 70% balance before shipment.
We also accept an irrevocable letter of credit (LC) at sight.
Production will begin once we receive the advance payment. When the machine is ready, we will send you pictures. After receiving the balance payment, we will proceed with the shipment.
Q8: Are you a manufacturer or a trading company?
A8: We are a combined manufacturing and trading company, specializing in the innovative development and production of machine tools, with extensive experience in global exports. We warmly welcome you to visit our factory.
Q9: Can you provide OEM services?
A9: Absolutely. We are happy to create a customized plan based on your requirements and offer the best service to meet your needs.
Q10: How can we receive training for the machines?
A10: You can send your team to our factory for free training, or we can arrange for one of our engineers to travel to your location for on-site training.

---
