N35 NdFeB Permanent Magnet for Integrated Blinds

Product Description

Product Description What is NdFeB Permanet Magnet?
NdFeB permanet magnet is the third generation of rare earth permanent magnet after the RECo5 magnet and RECo17 magnet, which is a tetragonal crystal system formed by neodymium, iron, and boron (Nd2Fe14B). Since the introduction of NdFeB, it has been popularized and applied worldwide due to its high quality and low cost.
NdFeB is also the strongest performance permanent magnet among contemporary magnets, its main raw materials are: rare earth metal neodymium 29%-32.5%, metal element iron 63.95-68.65%, non-metal element boron 1.1-1.2%, add dysprosium 0.6-8%, niobium 0.3-0.5%, aluminum 0.3-0.5%, copper 0.05-0.15% and other elements, and The combination of these elements and after post-processing becomes our application of permanent magnets.

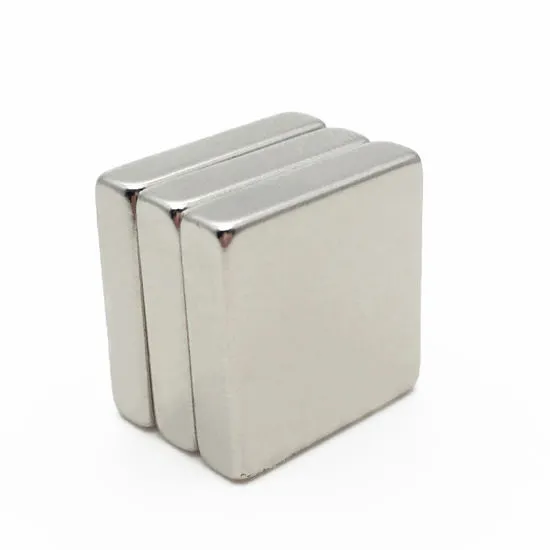

Detailed Photos
Product Parameters Muding NdFeB Performance Parameters

	GRADE	BR				HCB		HCJ		BH(MAX)				ºC
		KGs		T		bHc		iHc		MGOe		KJ/m3
		Max	Min	Max	Min	KOe	KA/m	KOe	KA/m	Max	Min	Max	Min
N	N52	14.8	14.2	1.48	1.42	>=10.5	>=836	>=11	>=876	54	50	432	400	<=80
	N50	14.5	14	1.45	1.4	>=11.0	>=876	>=12	>=955	52	48	416	384	<=80
	N48	14.3	13.7	1.43	1.37	>=11.0	>=876	>=12	>=955	50	46	400	368	<=80
	N45	13.8	13.2	1.38	1.32	>=11.0	>=876	>=12	>=955	47	42	376	334	<=80
	N42	13.5	12.9	1.35	1.29	>=11.0	>=876	>=12	>=955	44	40	350	318	<=80
	N40	13.2	12.6	1.32	1.26	>=11.0	>=876	>=12	>=955	42	38	334	302	<=80
M	52M	14.8	14.2	1.48	1.42	>=13.3	>=1059	>=14	>=1114	54	50	432	400	<=100
	50M	14.5	14	1.45	1.4	>=13.1	>=1043	>=14	>=1114	52	48	416	384	<=100
	48M	14.3	13.7	1.43	1.37	>=12.8	>=1019	>=14	>=1114	50	46	400	368	<=100
	45M	13.8	13.2	1.38	1.32	>=12.4	>=987	>=14	>=1114	47	42	376	334	<=100
	42M	13.5	12.9	1.35	1.29	>=12.1	>=963	>=14	>=1114	44	40	350	318	<=100
	40M	13.2	12.6	1.32	1.26	>=11.8	>=939	>=14	>=1114	42	38	334	302	<=100
	38M	13	12.2	1.3	1.22	>=11.5	>=915	>=14	>=1114	40	36	318	287	<=100
H	50H	14.5	14	1.45	1.4	>=12.9	>=1027	>=16	>=1274	52	48	416	384	<=120
	48H	14.3	13.7	1.43	1.37	>=12.7	>=1011	>=16	>=1274	50	46	400	368	<=120
	45H	13.8	13.2	1.38	1.32	>=12.4	>=987	>=17	>=1353	47	42	376	334	<=120
	42H	13.5	12.9	1.35	1.29	>=12.1	>=963	>=17	>=1353	44	40	350	318	<=120
	40H	13.2	12.6	1.32	1.26	>=11.8	>=939	>=17	>=1353	42	38	334	302	<=120
	38H	13	12.2	1.3	1.22	>=11.5	>=915	>=17	>=1353	41	36	318	287	<=120
SH	48SH	14.3	13.7	1.43	1.37	>=12.8	>=1011	>=20	>=1592	50	46	400	368	<=150
	45SH	13.8	13.2	1.38	1.32	>=12.4	>=987	>=20	>=1592	47	42	376	334	<=150
	42SH	13.5	12.9	1.35	1.29	>=12.1	>=963	>=20	>=1592	44	40	350	318	<=150
	40SH	13.2	12.6	1.32	1.26	>=11.8	>=939	>=20	>=1592	42	38	334	302	<=150
	38SH	12.9	12.2	1.29	1.22	>=11.5	>=915	>=20	>=1592	40	36	318	287	<=150
	35SH	12.4	11.7	1.24	1.17	>=11.0	>=876	>=20	>=1592	37	33	295	263	<=150
UH	45UH	13.8	13.2	1.38	1.32	>=12.4	>=987	>=25	>=1990	47	42	376	334	<=180
	42UH	13.5	12.9	1.35	1.29	>=12.1	>=963	>=25	>=1990	44	40	350	318	<=180
	40UH	13.2	12.6	1.32	1.26	>=11.8	>=939	>=25	>=1990	42	38	334	302	<=180
	38UH	12.9	12.2	1.29	1.22	>=11.5	>=915	>=25	>=1990	40	36	318	287	<=180
	35UH	12.4	11.7	1.24	1.17	>=11.0	>=876	>=25	>=1990	37	33	295	263	<=180
EH	42EH	13.5	12.9	1.35	1.29	>=12.1	>=963	>=30	>=2388	44	40	350	318	<=200
	40EH	13.2	12.6	1.32	1.26	>=11.8	>=939	>=30	>=2388	42	38	334	302	<=200
	38EH	12.9	12.2	1.29	1.22	>=11.5	>=915	>=30	>=2388	40	36	318	287	<=200
	35EH	12.4	11.7	1.24	1.17	>=11.0	>=876	>=30	>=2388	37	33	295	263	<=200
AH	32AH	12.1	11.4	1.21	1.14	>=10.7	>=852	>=35	>=2786	34	30	272	240	<=230
	30AH	11.5	10.8	1.15	1.08	>=10.2	>=812	>=35	>=2786	32	28	255	223	<=230
	28AH	11.2	10.4	1.12	1.04	>=9.80	>=780	>=35	>=2786	30	26	239	207	<=230

Our Advantages
Why choose us?
√ Producing 700000 sqm per year
√ 15 year manufacturers guarantee on the sealed unit
√ Tested to 151,000 cycles
√ The most famous brand of blinds between glass in China
√ We creating state-of-the-art factories dedicated to the production of sealed units with blinds inside
√ Convenient transportation,ready to delivery to you √ Finished more than 7 million sqm cases
√ Create long-trem cooperation with most of world top500 real estate enterprises/top50 in China
√ 14 years experience in blinds between glass serving
Packaging & Shipping √ We also create our own fleet of delivery system
√ packed as you required
FAQ 1: How long will you give me the reply?We will contact you in 12 hours as soon as we can.2: Could I get samples?Yes, we have materials in stock to help you to get the samples as soon as we can.3: How about the quality of the magnets?We have the certification of ISO, TS and ROSH, we could send the certification test of our company to you.4: How is the price?As we believe the quality is the most important, we will provide the best quality magnet we can with reasonable price.5: Could you provide me the shortest lead time?We have materials in our stock, if you really need, you can tell us and we will try our best to satisfy you.6: Could I visit your factory?Of course, if you need we will help you to visit our factory.7: If I have paid, when will you help me to produce?When we have received the money in our account, we will give you the receipt and arrange to produce immediately.
