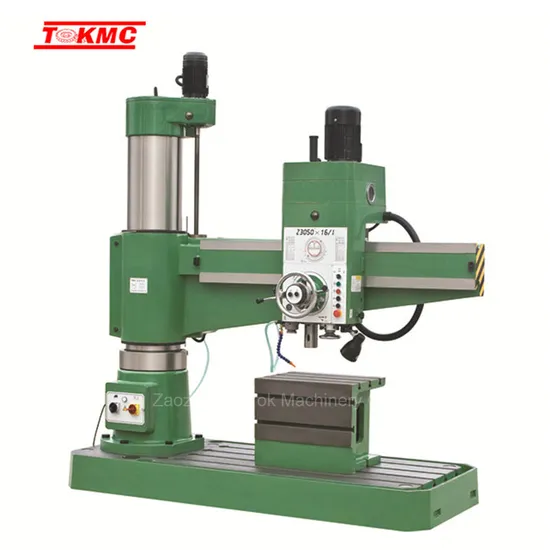

Z3050X16 Mechanical Clamping Bore Drilling Machine

US$2,000.00-10,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
z3050x16
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
50-100mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
ISO 9001
Condition
New
Max.Drilling Dia.
50 mm Cast Iron
Spindle Taper
Mt5
Name
Self Drilling Screw Making Machine
Weight
2800 Kg
Transport Package
2170× 950× 2450
Specification
drilling dia 50 mm
Trademark
tokmc
Origin
China
HS Code
845929000
Production Capacity
100 Sets/Year

Product Description

hdd drilling machine
standard accessory
Hardeded gear parts
Item Z3050×16 Z3050×14
Max.drilling dia. mm 50 50
Distance from spindle nose to table surface mm 260-1050 260-1150
Distance between spindle axis and column surface 360-1600 360-1400
Spindle travel mm 220 220
Spindle Cone MT 5 5
Spindle speeds range (r.p.m) 78.135.240.
350.590.1100		 78.135.240.
350.590.1100
Spindle speed step 6 6
Spindle feeding step r.p.m 2.10-0.56 0.10-0.56
Spindle feeding step 3 6
Rocker rotary angle 360 360
Main motor power kW 4 4
Movement motor power kW 1.5 1.5
N.W./G.W./ kg 2800 2400
Overall dimensions mm 2170×950×2450 1950×810×2450
