CE Standard High Performance New Style Servo Energy-Saving Plastic Injection Molding Machine Hxm158

US$18,000.00-25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HXM158
Type
Plastic Injection Molding Machine
Structure
Horizontal
Plastic Type
PS,ABS,PP,PE,HDPE,PA,EVA
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Energy Saving
Servo Energy Saving
After Sales Service
Enginners Available to Service Machine
Voltage
380V,50Hz,According to Countries
Showroom Locate
Malaysia,Russia,Turkey,Uzbekistan
Condition
New
Inject Weight
277 PS
Space Between Tie Bar
460X410
Machine Weight
4.3 Ton
Transport Package
Standard Package
Specification
5.0x1.23x1.975
Trademark
Highsun
Origin
China
HS Code
8477101090
Production Capacity
7000 Sets / Year

Product Description

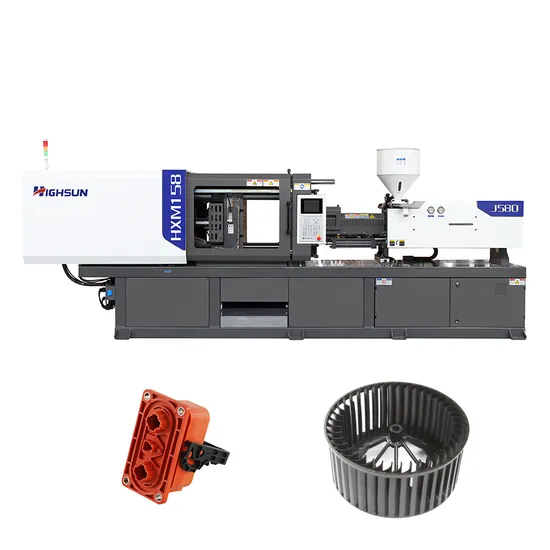

1.Picture

MODEL:HXM158
TECHNICAL PARAMETER TABLE A B C D
INJECTION UNIT SCREW DIAMETER mm 38 42 45 48
SCREW L/D RATIO L/D 24.3 22 20.5 19.2
INJECTION CAPACITY IN THEORY cm3 226 277 318 361
INJECTION WEIGHT(PS) g 206 252 289 328
oz 7.2 8.8 10.1 11.5
INJECTION PRESSURE MPa 248 203 177 155
INJECTION RATE g/s 100 126 144 163
PLASTICIZING CAPACITY g/s 13 15 20 24
SCREW SPEED rpm 220
CLAMPING UNIT CLAMPING FORCE KN 1580
MOVING MOULD-PLATE STROKE mm 400
MAX. MOULD HEIGHT mm 500
MIN. MOULD HEIGHT mm 150
SPACE BETWEEN TIE-BARS (W×H) mm 460x410
HYDRAULIC EJECTOR FORCE mm 53
HYDRAULIC EJECTOR STROKE KN 130
EJECTOR NUMBER n 5
OTHERS PUMP PRESSURE MPa 16
MOTOR /DRIVING POWER KW 15/18.5
HEATING CAPACITY KW 10.95
MACHINE DIMENSION (L×W×H) m 5.0x1.23x1.975
MACHINE WEIGHT t 4.3
OIL TANK CAPACITY L 253
