Outboard Engine/ Outboard Motor 15HP/9.9HP 2stroke and 4 Stroke / Outboard Boat Engine

Product Description

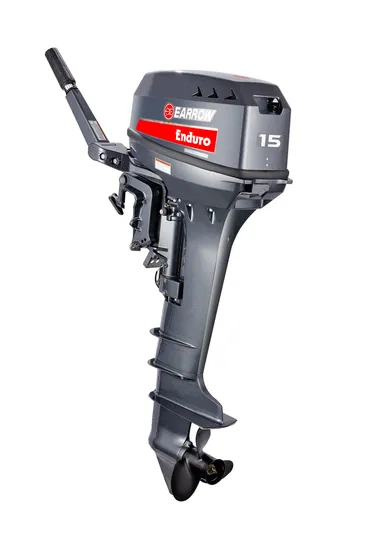

Outboard Engine/ Outboard Motor 9.9HP/15HP 2stroke Outboard boat engine
EARROW Advantages:
1,same with yamaha new model 15 hp Enduro type E15DMHL 6B4K, much more powerful and better accelaration;
2,Longer engine life than 15hp old model, better performance;
3,Passed 500 hours non-stop durable testing in rivers/sea/lakes, it is aproved that our 15HP engine could even reach 18hp
4, High quality spare parts inside engine used:
Crankshaft & Intake valve&lower unit gears: Taiwan supplier, more qualified, Longer engine life .
Carburetor: TK Japan
All electric parts use high quality suppliers,same supplier with Honda.
5,All metal spare parts surface with unique anti-corrosion pretreatment,this technology learn from Evinrude BRP outboards painting process.
6,Oil Painting:PPG brand (same with Evinrude painting),5 layers paint & anti-corrosion paint, won't happen painting peel off within 2 years
7,Top cowling: ABS &PP material Ratio adjusted, better for noise reduction, more durable and flexible.(will not broken even drop from second floor.)
Videos:
https://youtu.be/6zVUdviJ49g Double 30hp engine testing
http://youtu.be/yW9w4O6YQwU EARROW outboard engine 30hp
https://youtu.be/kQjuH3cXPwk Top cowling hit by steel bar, no broken
Specification:

Model		TE15D
Dimension		Overall length: 878mm (34.6 in)
		Overall width: 363 mm (14.3in )
		Overall height S:1062mm (41.8in )
		Overall height L: 1189 mm (46.8in )
Net weight (S/L)		38kg/ 40kg
Gross weight (S/L)		58kg/ 60kg
Package Size (S)		121*71*44 cm³
Full Throttle Operating Range		4500-5500 r/m
Maximum Output		11kw/15hp
Idling Speed		1050±50r/m
Type		Two Stroke
Displacement		246 cc
Bore×Stroke		56.0×50.0mm
Ignition System		CDI
Spark Plug		NGK B8HS-10
Spark Plug Gap		0.9-1.0mm
Control System		Tiller Handle
Starting System		Manual
Starting Carburation System		Choke Valve
Gear Position		Forward-Neutral-Reverse
Gear Ratio		2.08 (27:13)
Trim and Tilt System		Manual Tilt
Recommended Fuel		Unleaded Gasoline
Recommended Engine Oil		2-stoke outboard motor oil
Fuel Oil Ratio		50:1
Gear Oil		0.250L
Fuel Tank Capacity		24 L

Key parts Taiwan Crankshaft / Cylinder gasket/ Gear; Auto parts piston ring; German INA needal bearing / NSK bearing; NGK spark plug; Japan TK carburetor;
Warranty
1 year for commercial usage;
1 year for pleasure use;
R & D Team
OEM service available; Main engineers used to work in previous BRP(Evinrude) Chinese subsidiary plant, learn from BRP technology compared with other Chinese outboard motor,our outboards are more quiet;
Senior engineer have more than 20 years experience in metal moulding and plastic moulding experience.

Series:
Two stroke: 3hp;3.5hp;4hp;5hp;6hp,9.9hp;15hp;20HP,25hp,30hp,40hp;
Four stroke: 2.5hp;4hp;5hp;6hp

Certification
CE/SGS/ISO 9001
Brief
7 years outboards spare parts production experience,professional in process precision of die casting metal parts.
Four-axis CNC center and high precision measuring instruments---CMM
special surface pretreatment production line, passivated surface made the die casting
parts & engine more durable, anti corrosion;
Color of top cover are one-step moulding technology instead of painting, more flexible and more corrosion resisting;
4,99% spare parts are compatable with Yamaha Spare parts, easy for maintenance
Different customer visted and tested Earrow outboards:
Work with Nonprofit government Rescue Team:

---
