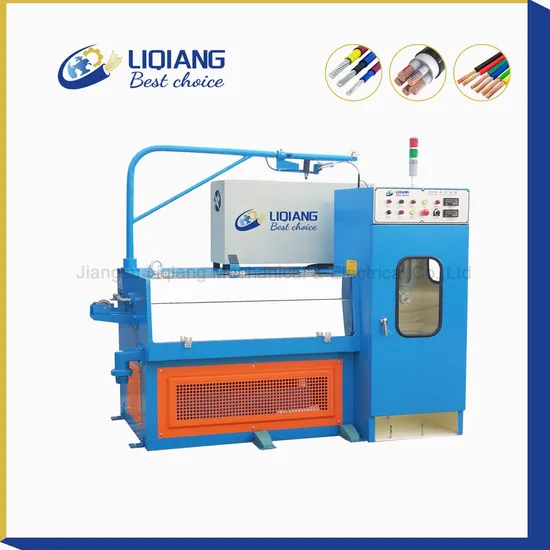

Liqiang 0.1-0.3mm Copper Wire Drawing Machine with Continuous Annealer

Product Description

Liqiang 0.1-0.3mm Fine wire drawing machine

Model	24DW
Usage	Bare copper wire drawing
Inlet diameter	Ф0.6-1.2mm
Outlet diameter	Ф0.1-0.3mm
Max. annealing speed	2500m/min
Using motor/ main motor	15KW
Slip ratio of main machine	13%
Slip ratio of last die	8%
Voltage	380V or Customized
Brake	Pneumatic brake
Drawing pass	24
Correction system	Automatically control
Operation direction	Right hand machine
Voltage	380V or Customized
Annealing method	DC three section annealing

LIQIANG-24DW Fine wire drawing machine with continuous annealer
To increase the production of copper wire in different sizes, the wire drawing machine is widely used in cable industry. The offered machine is manufactured by making use of top grade components under the supervision of our technical experts. We always focus on the performance and quality of the automatic wire drawing machine to fulfill diverse needs of clients.
The wire drawing machine is equipped with online continuous annealing so that wire can be drawn and annealed after one process.
Liqiang Mechanical & Electrical Co.,Ltd, is a professional wire and cable production manufacture with development design, whole plant planning and technical advice ,manufacture, installation, commissioning and after-sales service in one. Our main products are wire drawing machine, annealing machine, wire bunching machine and other related equipment for bare copper, copper alloy and stainless steel wire, etc.
We believe that perfect high-quality products only come from zero defect production process. Liqiang has adopted the advanced production equipment and technology , scientific & standardized management system and strict testing standards to ensure international advanced level on quality ,structure, performance and appearance. A post-sales service team with versatility and high-efficiency is standing by to provide a full range of services and ensure that the products of your choice are in good working condition all the time. Our products,well trusted and supported ,have been sold throughout China and Southeast Asia, the Middle East , South Africa and other regions.
Liqiang persisted in the principle of " quality wins market, integrity makes for brand" .We make each component with all our mind and energy and to meet multiple requirements all from clients' interests. We hope to create maximum value for the community as well as for clients.
Q: Are you a manufacturer or trade company?A: We are a real wire drawing machine manufacturer, we can support online and offline factory inspoestion anytime.Q:Where is your factory located?A: Our factory is located in Dongtai City, Jiangsu, China. It is not so far from Shanghai airport and Nanjing airport.
If you want to visit our factory, we may pick up you from airport. Q: How many years are your company engaged in the wire drawing machine?A: More than 20 years. We have our own technology develop department and testing department.Q: Can you send your engineer to my country for machine installation, worker training?A: Yes, sure. Our engineers have been to more than 60 countries before. They are very experienced.Q: What's the guarantee time for your machines?A: 12 months since the date of dispatching from our factory.Q: Can you export and supply the customs clearance documents we need?A: We have much experience for exporting. We will arrange all the customs clearances in advance for you.If you are interested in our machines,
please feel free to contact us now,
We will provide you professional solution with reasonable price

---
