Basic Info.
Pixel Configuration
1R,1G,1B
Pixel Density
284500dots/M2
System Operating Platform
WIN XP
Display Type
LED Video Display
Application
Stage Performance, Advertising, Shopping Guide
Application2
Shopping Mall
Application4
Chemist′s Shop
Application5
Dental Clinic
Application7
Metro Station
Application9
Movie Theater
Transport Package
Flight Case or Plywooden Box
Production Capacity
50000m2 Per Month
Product Description
Smart P1.5/P1.8 Supermarket Shelf 4K Full Color LED Digital Panel Screen Display
Product Description:
| Shelf LED display P1.875 |
| Item | Shelf LED display | Header LED display |
| S60-1.875 | S90-1.875 | S120-1.875 | H60-1.875 | H90-1.875 | H120-1.875 |
| Pixel pich(mm) | 1.875 | 1.875 |
| LED lamp | SMD1515 | SMD1515 |
| Module Resolution | 160x32 | 160x128 |
| Module size(mm) | 300x60 | 300x245 |
| Display size(mm) | 600x60 | 900x60 | 1200x60 | 600x240 | 900x240 | 1200x240 |
| Cabinet size(mm) | 604x68x25 | 904x68x25 | 1204x68x25 | 604x248x25 | 904x248x25 | 1204x248x25 |
| G.W(kg) | 0.8 | 1.2 | 1.5 | 3.2 | 4.8 | 6 |
| Shelf LED display P1.5 |
| Item | Shelf LED display | Header LED display |
| S60-1.5 | S90-1.5 | S120-1.5 | H60-1.5 | H90-1.5 | H120-1.5 |
| Pixel pich(mm) | 1.5 | 1.5 |
| LED lamp | SMD1212 | SMD1212 |
| Module Resolution | 200x40 | 200x160 |
| Module size(mm) | 300x60 | 300x240 |
| Display size(mm) | 600x60 | 900x60 | 1200x60 | 600x240 | 900x240 | 1200x240 |
| Cabinet size(mm) | 604x68x25 | 904x68x25 | 1204x68x25 | 604x248x25 | 904x248x25 | 1204x248x25 |
| G.W(kg) | 0.8 | 1.2 | 1.5 | 3.2 | 4.8 | 6 |
| View Angle | H: 160° / V: 160° |
| Brightness | >800 | Nits | |
| Refresh Rate | >3840Hz |
| Best View distance | >10 | m | |
| Operation Power | AC110V or 220V; 50/60Hz |
| Input interface | Ethernet / USB / WIFI |
| IP Rating | IP43 |
| Maintenance | Back side access |
| Lifetime | 50,000 Hours |
| Store Temperature | -30ºC ~ +85ºC |
| Working Temperature | -20ºC ~ +65ºC |
| Working Humidity | 10% ~90% |
| Power Comsumption(max.) | 1000 |
| Power Comsumption(ave.) | 280 |

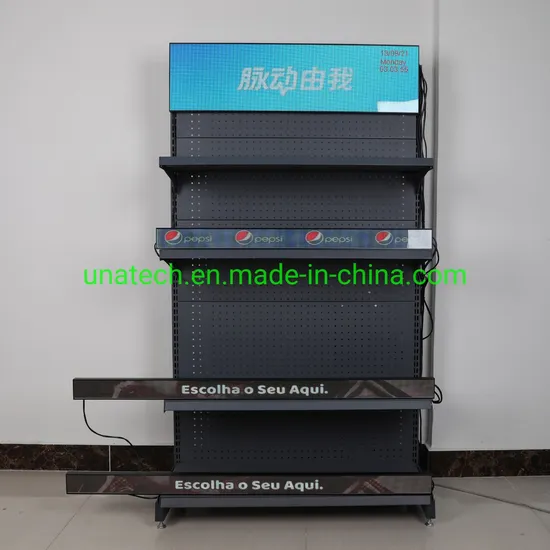

Product Photo:
Sizes:
Production procedure:
Manufacturer:
Exhibitions:
Certificates:
Product Feature:
Shelf LED Video Display is quite popular in Retail perimeter, night club, supermarket, retail shops or Fashion shops, etc.
It is compact, sleek, slim and light weight,
which is designed for shelf video display in shopping mall or stores
and is perfect for promotional advertisements for POS applications in retail businesses.
You can display video for product information like special price or promotional activity.
Advantages:
1. Aluminum cabinet, supler slim(25mm thickness) and light weight
2. Kinglight/Nationstar LED lamp, Acrylic front panel
3. Plug-in to display,simple operation
4. USB/WIFI/HDMI/LAN cable connection, Mobile phone or PC to publish amd manage it
