Farm Equipment Hydraulic Tillage Opposed Heavy-Duty 24 Disc Harrow

Product Description

Product Description

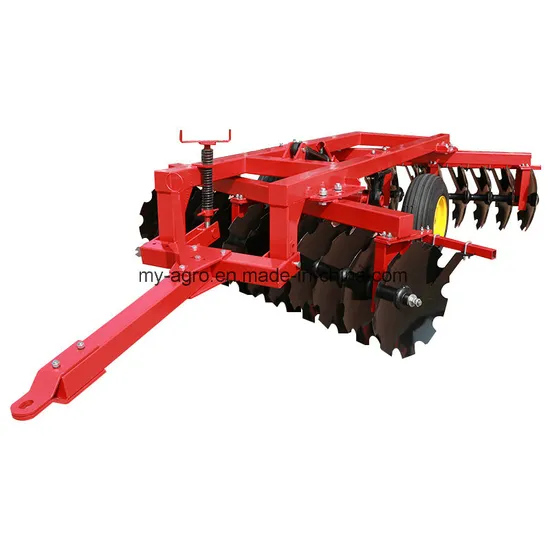

Heavy Duty Hydraulic Off Set Disc Harrow With Tire
The machine is suitable for cleaning crop residues before tillage on the virgin land and heavy clay soil and crushing clods after tillage. On the cultivated land, it can be used as the plough for the initial cultivation, however on the uncultivated land , the first harrowing depth can be up to 180mm. After harrowing, the land surface is smooth , the soil clods and crop residues are well crushed. It is easy to be mounted and adjusted, free to reverse , and convenient for transportation.
Main Specifications:

Model	unit	1BZ-1.8	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-4.0
Working width	m	1.8	2.2	2.5	3.0	3.4	4.0
Working depth	mm	180~200	180~200	180~200	180~200	180~200	180~200
Q'ty of disc		16	20	24	28	32	36
Disc diameter	mm	660	660	660	660	660	660
Total weight	kg	1100	1250	1350	1450	1550	1700
Matched power	hp	≥70	≥80	80~100	100~120	120~150	140~160
Linkage	Trailed

---
