Sanitary Stainless Steel Jacketed Heating Blending Mixing Tank Price

US$1,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
KQ
Application
Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid
Application Area
Food
Certification
CE, ISO
Condition
New
Main Material
Stainless Steel
Mixing Drum Shape
Circular Groove
Stirring Type
Spiral
Warranty
One Year
Working
High Speed Mixer
Name
Sanitary Stainless Steel Jacketed Heating Blendin
Material
Stainless Steel 304 /316
Usage
Milk / Drink /Water /Chemical
Heating
Electric /Steam /Hot Water
Capicity
300L-12000L
Motor Brand
Siemens /ABB/China Brand
Customized
Yes
Orign
Zhejiang China
MOQ
1 Set
Delivery
10 Days
Packing
Wooden Box
Spare Parts
Available
OEM
Yes
Voltage ,Hz,Phase
Make It to Your Order .
Manual Bool
Yes
Mixer Type
Agitator
Layout Type
Verticle
Operating type
Continuous Operating
Transport Package
Wooden Box
Specification
Based on special order
Trademark
KQ
Origin
Shanghai China
HS Code
8479820090
Production Capacity
1000units/Month

Product Description

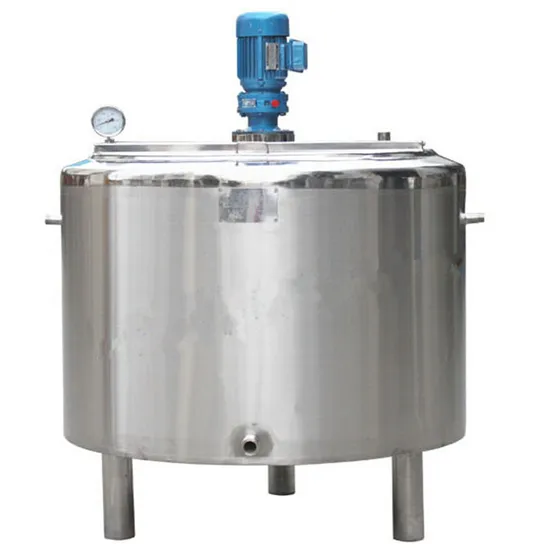

Sanitary Stainless Steel Jacketed Heating Blending Mixing Tank Price
Details:
We design all kinds of stainless tanks. They are in reasonable design, advanced technology, automatic control and reach GMP standards. The tank adopts vertical or horizontal and single-layer or double-layer structure and adds heat insulator according to the requirements of customers. The inner layer is be polished to Ra0.45μ M and the outside surface adopts mirror or frosted plate to keep warm. There are water inlet, reflux inlet, sterilizing inlet, cleaning inlet, manhole cover and 0.45μ M air respiratorresuscitator.
Material:
The tank material usually uses SUS304 or SUS316L to make if the customer has no special requirements.
Why choosing our tank?
1. our tank have sales department, engineering department, after sales department, we will provide one-stop service for you;
2. We are not competing for the price but the high quality and friendly service we competition
3. The salesman and engineer will listen to your requirements and the effect which you want to reach patiently, and tailored for you;
4. The after sales colleague will service for you from place an order to the actual production;
5.10 years of industry experience, industry leader;
6. Factory, office site visit.
Volume Body Diameter X Body Height Total Height Insulate PU Foam Inlet&Outlet
(L) (mm*mm) (mm) (mm) (mm)
500 840*1000 2300 60 38
600 920*1000 2400 60 38
700 990*1000 2400 60 38
800 950*1220 2550 60 38
900 1010*1220 2700 60 38
1000 1060*1220 2700 60 51
2000 1340*1500 2750 60 51
3000 1410*2000 3500 60 51
5000 1910*2000 3850 60 51
10000 2300*2440 4500 60 51
15000 2530*3000 5200 60 51
20000 2640*3660 5800 60 51

Volume		 Height of the whole tank (mm) Height of the Tank Body (mm) The Diameter of the Tan Body (mm) Height of the Discharge Hole (mm)
500L 1725 800 Φ 850 350
1000L 1950 900 Φ 1100 350
2000L 2500 1300 Φ 1300 400
3000L 2800 1500 Φ 1500 400
5000L 3100 1650 Φ 1800 400
6000L 3350 1800 Φ 1900 450
8000L 3600 1950 Φ 2100 450
10000L 3800 2000 Φ 2300 500
20000L 5350 3400 Φ 2600 500

Sanitary Stainless Steel Jacketed Heating Blending Mixing Tank Price
