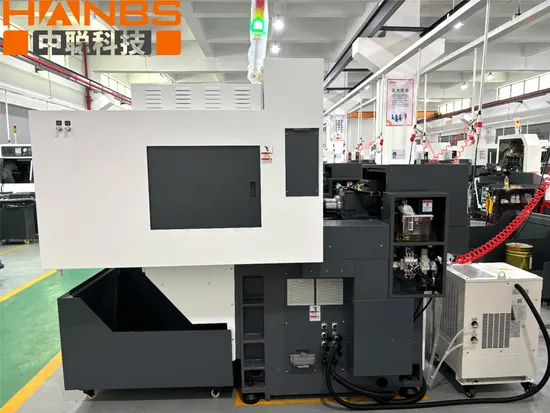

Hanbs Automatic Durable Swiss Type CNC Lathe with High Precision HS-320

Product Description

Hanbs Automatic Durable Swiss Type CNC Lathe with High Precision HS-320

	Project
Processing references	Maximum machining	Φ20mm
	Maximum machining length	190mm
	Maximum axial bore diameter	Φ10mm
	Maximum axial work wire size	M8
	Maximum spindle speed	10000rpm
	Radial maximum bore diameter	Φ7mm
	Radial maximum bore tapping size	M6
	Radial power head maximum rotation speed	ER11:10000/ER16:8000
	Rated speed of radial power head	ER11:8000/ER16:6000
	Maximum workpiece removal length	100mm
Tool dimension	Number of knives installed	6
	Tool (turning tool)	12X12
	sleeve	Φ25.0 X 4
Clip head guide sleeve	Spindle spring collet	TSUGAMI B0205CCR
	Power head collet	ER11,ER16
	Guide bushing	TSUGAMI BS-20#-B
Feeding speed	Z1/Y-axis feed velocity	30m/min
	X1	20m/min
Electric motor	Spindle drive power	2.5/3.7KW
	Power head drive power	1KW
	For cutting fluid	0.4KW
	Cooling of spindle	0.075KW
	Lubricating oil	0.01KW
Others	Spindle center height	1060mm
	Barometric flow	0.7mpa 0.5m³/min
	Main circuit breaker capacity	40A
	Input power	9.3KW
	Weight	2.6T
	Overall dimensions	2250X1200X1850mm

F&Q
Q1.Are you manufacturer or trading company?
A. We are professional machine tool manufacturer, we set export sales center & showroom in Dongguan city.
Q2. How can I place order?
A: You can contact us by email about your order details, or place order on line. Thank you!
Q3. Can you give the favourable price?
A. We have different series machine,but we can recomand you machine according to your products and the quote favourable price for you.
Q4.Can you provide some certificate?
A. We can provide certificate which you need.
Q5.What kind of products your machine can processing?
A.Maxi processing diameter is46 mm.Mini processing daimeter is 3mm.And you can see the above picture about the samples.
Q6.How will the machine be transported?
A.We transport machine by sea.
Q7.What is the features about the machine?
A.High precision and rigidity,improve customers' production.
Q8.How will the machines be packed?
A.We will fix the machine axial and pack it in wooden cases,make sure that the machine not be damaged.

---
