Heavy Duty Radial Drilling Machine

Product Description

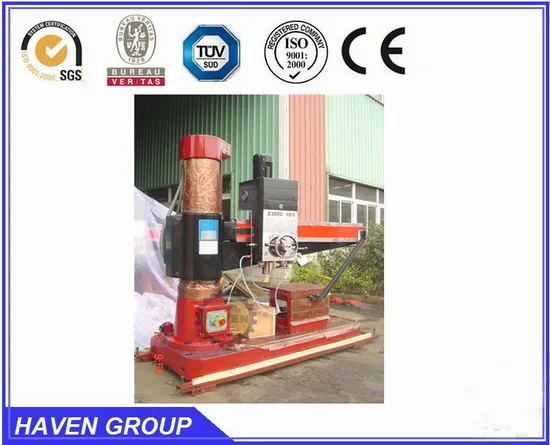

Z3063X20A Hydraulic Radial Drilling Machine
1.Character
Gather mechanical-electrical-hydraulic functions,use extensively.
With wide range of speed and feed, with manual,power and fine feeds. The feed
of machines are very easily engaged and disengagedat any time.
With safe and reliable feed safety machine,all parts easy operation and change.
All controls centralized on the head stock easy operation and change. Clamping
for assembli-es and speed change of spindle achiered by hy drandic power,cmle is sensitna owet nelile.
Main parts are made by machine center which import form KIA with high precision
and efficiency,ensuring reliability and high quality.
Integrating technology for casting parts is excellent,adopting casting equipment,
ensuringhigh quality of materia for basic parts.
Spindle parts are made by special high quality steel heat treatment to be made by
first class equipments,nsuring high strength and durability.
Main gears are machined by gear grinding,the machine ensuring high precision
and low noise.
2.Parameter

Model	Z3063×20A
Max.Drilling capacity	63
Distance spindle axis to column generating line (mm)	450-2050
Diameter of column (mm)	450
Spindle taper	MT5
Spindle travel (mm)	400
Spindle speeds range (r/min)	20-1600
Spindle speeds series	16
Range of Spindle feeds (r/min)	0.04-3.2
Spindle feeds	16
Max.Distance spindle nose to working surface of base (mm)	400-1600
Dimension of worktable (mm)	960×630×500
Dimension of base (mm)	2900×1250×250
Overall Size (mm)	3110×1250×3150
Power of Main motor (KW)	5.5
G.W/N.W (kg)	8000/7000
Packing dimension (cm)	347×147×235

3. ACCESSORY

Standard accessories Box shape worktable Taper sleeve Tool releasing Wrench Drift Eyelet bolts

Special accessories Quick instead Chuck Tapping chuck Grease gun

---
