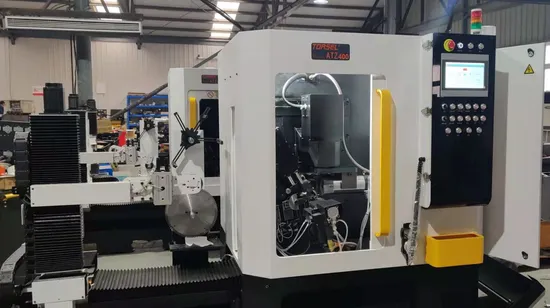

Saw Blade Top Grinding Machine Atz400

Product Description

ATZ400 Features and advantages
Used for grinding tct( tungsten carbide tipped) circular saw blade tooth top, serving for top angle (-10°~+26°) / bevel angle. Diameter is up to 405mm. It can form a production line with AFZ400( face) and ASZ400( side).
Features: 1. Robort arms auto loading saw blade2. CNC servo motor for precise positioning3. Built-in program for ease of use. 4. User friendly interface panel with touch screen5. tooth skipping, automatic compensation function, oscillation gridning moedel available6. special treated cast iron base and imported parts.7. Ready for water or oil coolantAdavantages:1. Good stability: Use special treated cast iron base and imported precision components to guarantee the accuracy and stability of the machine. Long-term use without deformation2. Easy operation: CNC with friendly interface panel, various tooth shapes available, all parameters can be set directly and stored automatically3. High accuracy: Precision<0.02mm or even better. satisfactory grinding performance4. High efficiency: robot auto loading, adjustable grinding speed 4-20s/tip
ATZ400 has a higher configeration model ATZ400H as choice.
Machine Parameters

Saw diameter	140~405mm
Bore diameter	15.88~50mm
Plate thickness	<6mm
Top angle	-10°~+26°
bevel angle	-45°~+45°
Pitch	<60mm
Kerf	<6mm
Wheel power	1.1KW
Wheel size	125mm*32mm*25mm
Wheel speed	4200RPM
Wheel linear velocity	28m/s
Grinding speed	1mm~15mm/s
Processing efficiency	4~20 s/tip
Grinding accuracy	<0.025mm
Coolant tank	150L
Cooling water flow	70L/min
Input voltage	380V 50Hz(OR 220V 60Hz)
Power	Approx 3.8KW
Dimension	2750*1270*1930mm
Weight	1950kg

Interface panel with touch screen Portable electrial handwheel
Higher configeration model ATZ400H
Able to sharpen both TCT and cermet tipped saw blade. Upgraded electricity spindle leads to higher precision and fast grinding speed.

Hebei Tuosi Mechanical Equipment Co.ltd is a professional saw blade manufacturer, specializing in producing circular&band saw blade tooth sharpening machine, circular sawing machine and other machine related to saw blade production. We have dozens of machines for you to choose from, including precision and economy models, to meet your different needs for quality and price. Just let us know your needs, tailored solution is available.

Exhibition Show
FAQ
1. What products do we have?
Four categories saw blade grinding machine:
1. economic type: normal accuracy, normal saw blade diameters, lower price, suitable for tct blade.
2. accurate type: high accuracy, large diameter saw blade can be processed, suitable for tct blade.
3. grinding machine with robot: robot auto picking and putting saw blade, suitable for mass production of tct blade.
4. cold saw blade grinding machine: highest accuracy, suitable for cermet tipped saw blade.
Except saw blade grinding machine, we also supply Measuring Projector, Side Runout Inspection Machine, Radial Runout Inspection Machine, Automatic Belt Polishing Machine, CNC Router Bit Grinding Machine, Automatic Tooth Seat Grinding Machine,etc.
2. What are the advantages of our machine?
1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low viibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficieny: adjustabled grinding speed, robot auto load, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality.

---
