Spice Grinding Machine Industrial Herb Powder Grinder

Product Description

Product Description Spice grinding machine industrial herb powder grinder

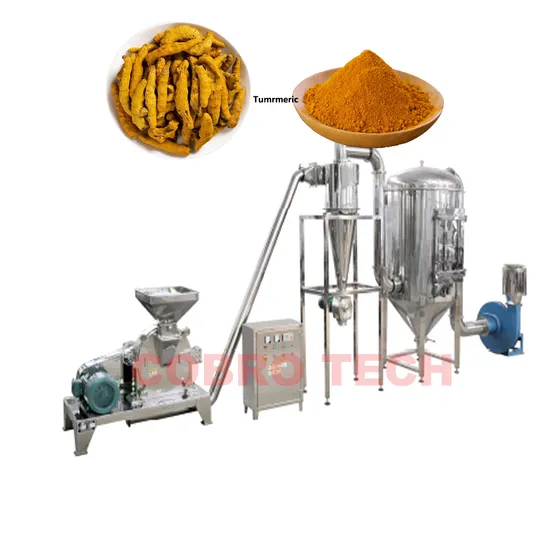

The herb powder grinder consists of hopper,fixed discs,rotating discs,motor,dust collector (optional),control box and other related parts.It makes use of the high speed relative movement of the movable fixed disc and the rotating disc to crush the materials through the comprehensive effect of striking and friction of the fluted disc as well as the mutual striking of the materials.the crushed material can be discharged directly from the grinding chamber of the machine and the desired granule size can be obtained by installing screens with different apertures.Besides,the whole machine is made of stainless steel.The inner surface of the enclosure becomes smooth through processing,thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.As a result,the production of medicine,food and chemical products can better conform to the national standard and the GMP requirement. Product Parameters

Model	PL-UC20	PL-UC30	PL-UC40	PL-UC60	PL-UC80
Capacity(kg/h)	30-150	30-330	50-450	80-560	120-750
Speed of principle axis (rpm)	4500	3800	3400	3000	2100
Size of input granule (mm)	10	15	18	20	25
Finished products fineness (mesh)	10-120	10-120	10-120	10-120	10-120
Power (kw)	4	7.5	11	22	30
Weight(kg)	230	350	450	700	1200

Feature
1) Simple structure,easy in installation and maintation.
2) Adopting advanced world famous brand components in bearing,electric parts and operation parts.
3) Running in a high automatization and intellectualization,whole sealed design,no pollution
4) Apply a linker to connect with the air conveyor,screw conveyor ,which can directly inline with mixing machine,filling machine,packing machine .

Detailed Photos
Rotated Pin Screen Wator cooling inlet
Product Application

Best seller equipments
Vacuum conveyor Vibrating sifter Bag filler



Packaging & Shipping

---
