100t Automatic Feeding Precision 4-Column Plane Cutting Machine

Product Description

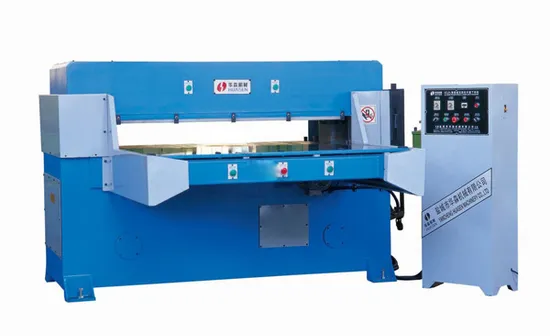

100T Automatic Feeding Precision Hydraulic Four-Column Plane Cutting Machine
Product Description
Usage and characteristics:
1. The machine is applicable for whole-broken or semi-broken operation of various nonmetal slices materials by die cutter. For example: Such industries as plastics packing, pearl cotton packaging, rubber and printing etc.
2. "Mitsubishi" PLC controlled, with simple, prompt and accurate operation.
3. The main machine adopts double oil cylinder, double-crank connecting rod balancing, four-column precise guiding mechanism, which an guarantee that the cutting depth at every cutting position is same.
4. The pressing board carries out slow cutting when it presses downward to contact the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
5. The central oil supply automatic lubricating system guarantees the service life and precision of machine.
6. Single-side or double-side automatic feeding system can be allocated to enhance the production efficiency of machine twice or thrice.
7. Cutting board micro-movement device can be allocated to evenly consume the cutting board and save cost.
8. Die cutter pneumatic clamp device can be allocated to make the replacement of die cutter convenient and prompt.
9. Optional:
1. Single-side and double-side automatic feeding systems;
2. Cutting board micro-movement device;
3. Die cutter pneumatic clamp device.
Remark: My factory can make the machine according your order, for example, the color, the motor information etc. My factory will supply the cutting board, tools and sapre parts together with the machine. Product Parameters

Model	XCLP3-100
Maximum cutting force	100Tons
Distance from upper pressing board to worktable	50-200mm
Cutting area	1600×900mm
	1400×900mm
Main motor power	7.5KW
Electric Supply Voltage	3x440/415/400/380/220/200V, 50/60 Hz
Machine weight (approximate)	8000Kg
	7600Kg

Detailed Photos
Packaging & Shipping
