Fully Automatic Small Flat Vulcanizing Machine Rubber Vulcanizing Machine Thermoforming Machine

Product Description

Product description:
Small Flat Vulcanizing Machine Mainly Used For Pressing Various Rubber Products And Thermosetting Plastic Products. It Can Also Be Used For Ordinary Hydraulic Machinery. The Machine Adopts Column Type And Frame Structure, Which Is Simple And Reasonable In Structure, Flexible In Operation, Spacious In Space And Beautiful In Appearance. The Oil Cylinder And Plunger Of This Machine Are Made Of High-Quality Materials. The Hydraulic Station And The Electric Control Box Are Located On Both Sides Of The Main Engine, Which Is Easy To Operate.
Product parameters:

Product number	HJ-350x 350×2	HJ-400x 400×2	HJ-500x 500×2	HJ-600x600×2/4
Nominal clamping force (MN)	0.25	0.5	0.8	1
Hot plate spacing(mm)	125	125	125	125
Working layers of hot plate	2	2	2	44961
Heat plate unit area pressure (Mpa)	2.04	3.13	2.52	2.78
Plunger stroke	250	250	250	250/500
heating method	Electricity/steam	Electricity/steam	Electricity/steam	Electricity/steam
main motor power	2.2	2.2	2.2	2.2
External thermal power	2.4kw/board	3kw/board	3	7.5kw/board
Dimensions length x width x height (mm)	1450×400×1350	1600x400x1440	1450x690x1818	1880x780x1660 (2150)
Machine weight (kg)	1200	1500	1700	2500/3100
structure type	Column	Column	Column	Column

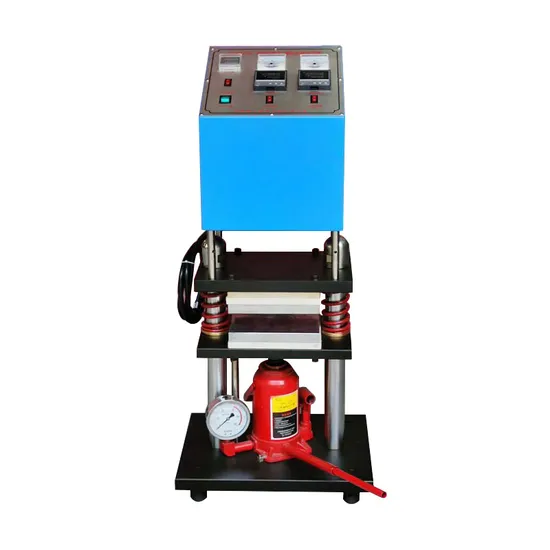

Detailed Photos

---
