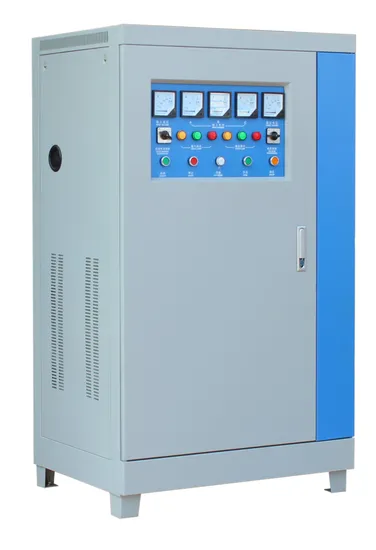

Shenglin SBW 3 Phase 100kVA Automatic Voltage Regulator Stabilizer

Product Description

Product Description
SBW three-phase AC voltage regulator for lifting the voltage regulation automatic compensation is the maximum power regulator power supply, when the grid voltage fluctuation or load current changes, can automatically stabilize the output voltage, in order to protect the normal operation of power equipment.
Applicable to small factories full field power supply. Large and medium-sized industrial and mining enterprises workshop, department power supply. Or important equipment single machine supporting. Compared with other types of voltage stabilizers, it has the advantages of large capacity, high efficiency, no waveform distortion, smooth voltage regulation, etc. It is suitable for a wide range of loads, can withstand instantaneous overloading, and can work continuously for a long time, manual/automatic switching, equipped with over-voltage protection, phase failure, phase sequence protection and automatic protection against mechanical failures, the machine is small in size, light in weight, easy to install and operate reliably, and so on. (Fractional display, meter indication two types).

Model and Meaning

Operating Installation COND
1. Three Phase Voltage Stabilizer Ambient temperature: -10°C~+40°C.2. The altitude does not exceed 1000 meters.3. Relative humidity: not more than 90%.4. The installation site should be free of gas vapor, chemical deposits, dust, dirt, and other explosive and aggressive media that can seriously affect the voltage stabilizer's insulation.5. The installation site should be free of severe vibration or bumps.6. The special use conditions that do not meet the above requirements shall be determined through consultation between the user and the company.

Main technical parameters

Phase	Single-phase	Three-phase
Input voltage	220V±20%	380V±20%
Output voltage	220V±5% (can be set)	380V±5% (can be set)
Frequency	50Hz~60Hz	50Hz~60Hz
Stabilized voltage precision	±(1~5)% (can be set)	±(1~5)% (can be set)
Response Time	≤1.5s (Input voltage step 15V)	≤1.5s (Input voltage step 25V)
Output overvoltage protection value	(242±2.2)V	(418±3.8)V
Efficiency	≥95% (power class: more than 50kvA)
Overload capacity	Double rated current, maintain 1 minute
Protection function	Overvoltage, over current, phase failure, phase sequence
Insulation resistance	≥5MΩ
Waveform distortion	No additional waveform distortion

Remarks:
1. SBW Three Phase Power Voltage Stabilizer (380V/220V), (380V/200V) and (220V/220V) products can be customized.2. Three Phase Voltage Stabilizer that exceed the parameters and technical performance in the above table can be negotiated and customized.For example: voltage output 400V, voltage output three-phase 220V, voltage regulator range ± 30% can be customized.


Product Details

Company Profile
Zhejiang Shenglin Trading Co., Ltd. was born in China's electrical capital - Yueqing, ploughing into the electrical production industry for more than 30 years, with excellent product expertise, a wealth of electrical categories, as well as professional production lines, and with the process of marketization and internationalization, and continue to comply with the requirements of the times, and gradually adjust, improve and develop.
We always adhere to industrial development, create value for customers, adhere to technological innovation, high-quality development, (and people-oriented) five-star service business philosophy, to create a new ecological electrical industry chain.
Our mission: adhere to the globalization of efficient, high-quality and cost-effective electrical products, promote the transformation of product intelligence and green, so that the current safely through every corner of the world.
Our vision: to build an internationalized electrical enterprise with first-class service quality. Green ecology, sustainable development, people-oriented
Our values: market-oriented, customer-centered, adhere to the green ecology, and promote the sustainable development of the industry.
WORKSHOP


FAQ
Q: Are you a manufacturer or trading company?
A: We are trading company, but our brother factory has been manufacturing electrical products for over 20 years.
Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes, we do have. Please feel free to contact us on line or by Email. We would be glad to share our catalogue with you!
Q: I need your price list of all your products, do you have a price list ?
A: We apologize that we do not have a list, please understand that raw material prices are constantly changing, which means that prices could not always stay the same. If you are interested in any items, please let us know and we will update you on the price as soon as possible!
Q: I can't find the product on your catalogue, can you make this product for me?
A: Our catalog only collects most of our products, please do not hesitate to let us know you need any other products!
Q: What about your delivery time?
A: Each model has a different production time, please contact us and we will let you know at the first time.
Q: Can you provide samples ?
A: Sure, we could provide samples for tests or quality check.
Q: What's the payment terms?
A: We accept T/T, 30% deposit and 70% balance before shipment.
Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T(Wire transfer),Western Union LC and Paypal. Please be sure that we can receive the same amount of the Invoice. And sure you can pay RMB.
Q: Would you accept using customer's logo?
A: Yes, we can provide OEM and ODM service.
Q: How long is the warranty time?
A: 12 months after receipt of goods.

---
