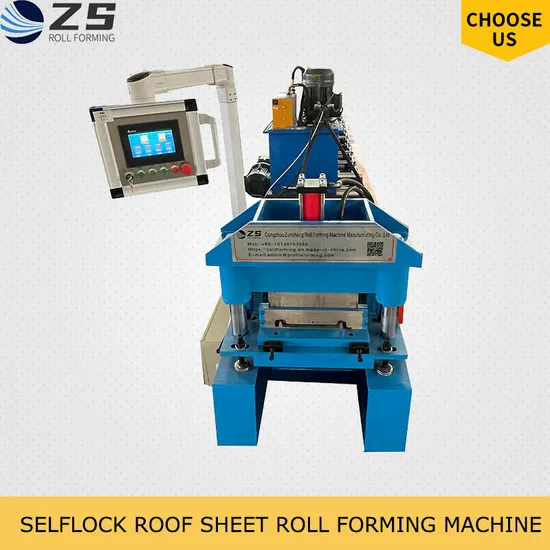

Standing Seam Former Roofing Sheet Selflock Roof Panel Machine with Automatic Decoiler

Product Description

Product Description
Self Lock Metal Join Hidden Roof Sheet Roll Forming MachineSelf Lock Metal Join Hidden Roof Sheet Roll Forming MachineOne of the most sought-after types of roll forming machines, this versatile equipment shapes various steel roof sheets, ideal for buildings, factories, supermarkets, and more. It accommodates coil widths of 500mm and thicknesses ranging from 0.3mm to 0.8mm. Built with a robust 16mm thick wall board type for a sturdy frame, it operates at speeds up to 15m/min. The user-friendly PLC system with a touch screen interface ensures simple and efficient operation.
Profiles:
We offer custom machine designs tailored to your specific requirements:

Hydraulic Curve Machine:

Roll Forming Machine Components:

No.	Name	Qty
1	De-coiler	1 Set
2	Forming Machine	1 Set
3	Hydraulic Cutting Device	1 Set
4	PLC Control Box	1 Set
5	Hydraulic Pump Station	1 Set
6	Production Support Table	1 Set
7	Pre-sliding Cutter	1 Set

Working Flow:
Uncoiler ----- Molding Core ----- Hydraulic System ----- Automatic Control System----- Automatic Shearing Mechanism ----- Products Receiving Tables
Detailed Photos
Feeder System:
Discover the cutting-edge design of our latest feeder system.
Ensures stable operation with minimal coil swing.
Effortless adjustment for optimal performance.
Working width: Within 600mm
Main Roll Forming System:
Driving Type: Choose from Chain (standard), Gear, or Gearbox;
Forming Model: Available in Integral or Split Forming;
Forming Machine Structure: Select from Medium-plate Type (standard), Arch Type, or Guide-pillar Type;
Roller: Durable 45# steel
Shaft: Robust 45# steel, 70mm
Motor Power: Options of 4.0kW, 5.5kW, or customized as per design requirements;
Main Frame: Constructed with 350# or 400# H-beam steel welding for superior strength.
Roller details:
Rollers precisely crafted by CNC-center to guarantee high precision, ensuring perfect product formation.
Hydraulic Cutting System:
Working Model: Choose between Hydraulic Cutter (standard) or Electric Cutter;
Cutter Blade Material: High-quality Cr12 steel.
Hydraulic Oil Pump System:
Equipped with a hydraulic oil pump featuring a fan cooling system.
Power: 4kw
High-efficiency gear pump
Automatic Seaming Machine:
Operates electrically for seamless performance.
PLC Control System
Automatically controls quantity and cutting length with precision.
Input production data (batch, pieces, length, etc.) on the touch screen for fully automated production.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand) Or Delta(Taiwan brand)
Inverter	Siemens (German brand) Or Delta(Taiwan brand)
7-Inch Color Touch Screen	Siemens (German brand) Or Delta(Taiwan brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens (German brand) Or Delta(Taiwan brand)
Air Switch	LG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24V

After-Sale Service:
1. Warranty:18 months from the date of receipt.
Within 24 months, we provide free replacement parts via courier.
2. Lifetime technical support for our machines.
3. Technicians available for installation and worker training at client's site (additional cost applies).
Terms Of Trade:

Minimum order quantity (MOQ)	1 Set
Delivery time	about 60 workdays
Port of loading	port of Tianjin
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style:

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
