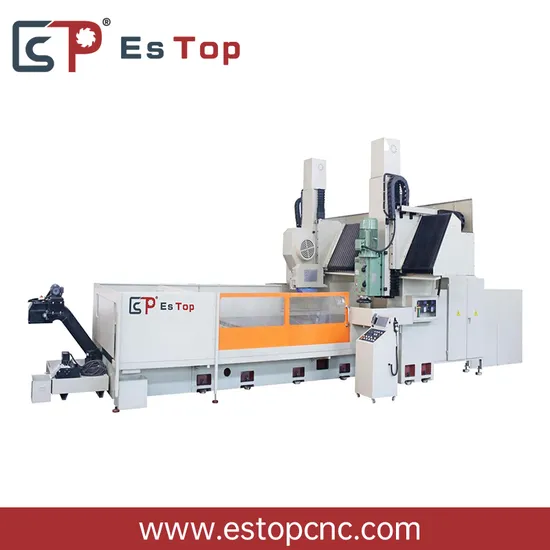

Estop Mold Plate CNC Gantry Surface Grinder Etls-70200 Kent Same Style

Product Description

Product Description
Specifications of ETLS series double grinding head:

Main item	Twin heads double column type surface and slideway grinder	Unit	60150/60200	70200/80200
Worktable	Electromagnet table size(x*y)	mm	1500/2000x600	2000x700/800
	Left and right Xaxis travel	mm	1700/2200	2200
	Max center of wheel to table	mm	570
	Two column passed maximum workpiece size	mm	1000
	Worktable Maximum loading copacity	kg	5000
	Worktable feed speed	m/min	5-30
	Table t-slot specification	mm*n	18x3
Surface Grinding head	Grinding wheel size max	mm	Di400x Dia127x 20-50
	Spindle motor	HP*P	25x4
	(50HZ) Grinding wheel speed	R.P.M	1450
Slideway head	Grinding wheel size max	mm	Dia350xDia127x40
	Rotation Angle	.	Left90° Right90°
	Spindle motor	HP*P	7.5x4
	Positive and negative rotation(Option)	R.P.M	0-1500
Size	Height of machine(Move to top Height)	mm	3200
	Layout Floor space(Length X width)	mm	4450/5450x3550 5450x3550
	Weight	kg	≈11000/11500	≈12000/13000

Tips: We can customize models according to customer requirements, more Non-standard series please consult the manufacturer.
FAQ
Q1. What is the payment Terms ?
A1: T/T, 30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready , we will take pictures to you after we got your balance payment. we will send the machine to you.
Q2.How can I choose the most suitable machines ?
A2: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
Q3. What is the package of the machines?
A3: The machines standard packed by iron pallets or Fumigated wood with plywood films.
Q4. What is your trade terms?
A4: FOB, CFR, CIF or others terms are all acceptable.
Q5. What is your minimum order quantity and warranty?
A5: MOQ is one set, and warranty is one year. but we will offer lifetime service for machine.
Q6.When is the delivery time?
A6: We will delivery then within 15-60 working days after received your deposit. If some special machines will be some longer, we will give you the answer accordingly.
Q7: How to ensure the quality?
A7: 1.Firstly we choose best material for the processing.
2.Being and after processing, we will inspect the finished parts.
3.Machine finished, our company QC will test the machine as per customer requests.
Q8: How to deal with the after-sales service?
A8: 1. Technician available for training and installation at customer's company Internet service by sending emails and videos, communicating online or calling 3. 1 year warranty. During the warranty period, we will sent damage of the machine parts (non-human factors)for free.
Q9: How do we get the training for the machines?
A9: You can send your people to our factory and we will offer training free of charge, or we can send our engineer to your place.
Q10: Where is your factory located?
A10: Our factory is located in Dongguan city and Chongqing city.

---
