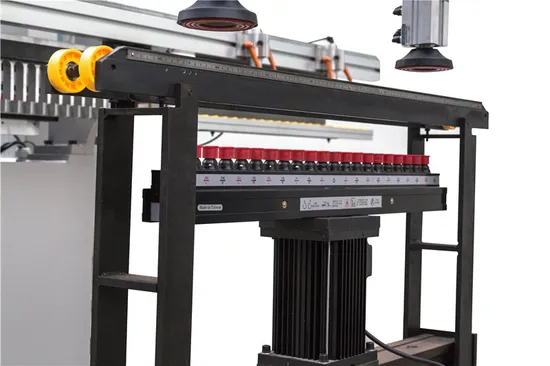

Double Lines Drilling Machine for Making Furniture

Product Description

double lines drilling machine for making furniture
Technical Specification:

Max. diameter of holes	35 mm
Depth of drilled holes	0-60 mm
The number of spindles	42
Center distance between spindles	32 mm
Rotation of spindle	2840 r/min
Total motor size	4.5 kw
Suitable voltage	380 v
Air pressure	0.5-0.8 Mpa
Gas consumption for drilling ten panels per minutes approximately	20L/min Approximately
Max. distance of the two longitudinal heads	1850 mm
Height of working platform off the ground	800 mm
Over size	2000x1200x1600 mm
Packing size	2660x1260x1840 mm

Product Details:
Certificate:
Our Services: (1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients' special requirement, offering the reasonable plan and free design helping to
select the equipment.
* Welcome to visit our factory.

(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.

(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging
Our company:
Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
