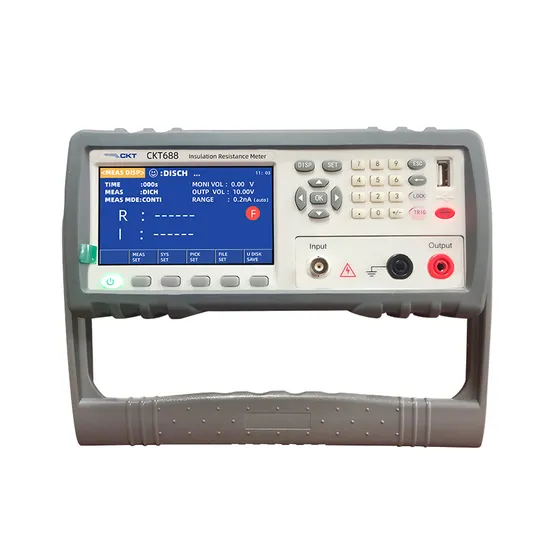

Ckt688 Insulation Resistance Meter High Resistance Test Equipment

Product Description

Product Description https://ckt2017.en.made-in-china.com/company-Changzhou-Chuangkai-Electronic-Co-Ltd-.html
Brief Introduction
CKT688 adopts 4.3 inches true color IPS display shows the test value, programmable and adjustable, with test speed: 12 times/sec; dual display of resistance and leakage current, CKT688 is programmable sequential test mode, having 4-level comparator function of 3-bin GD and one NG. Equipped with HANDLER/RS232C/USB/RS485 interface for remote control. U disk records test data and can remotely upgrade instrument firmware. With optional foot switch trigger function. CKT688 is widely used for high-value resistance; capacitor insulation resistance and leakage; various insulating materials and wire and cable equipment, etc.
Specification:

SPECIFICATIONS
	CKT688 Insulation Resistance Meter
Parameter	Insulation Resistance, Micro current
Output Voltage	0.5V~1000VDC (0.1V step NC)
Basic Accuracy	V > 10V: ±0.25% ±0.5V, V≤10V: ±1% ±0.5V
IR Test Range	10kΩ~10TΩ
Basic Accuracy	I > 10nA: ±2%, I < 10nA: ±5%, I < 1nA: ±10%
Current Test Range	10pA ~1mA
Basic Accuracy	I > 10nA: ±2%, I < 10nA: ±5%, I < 1nA: ±10%
Test Speed	Fast: single measurement time ≤45ms, Slow: single measurement time ≤85ms
Charging Test Time	Charging time: 0~999S, programmable Test time: 0~999S, programmable
Range	Auto/Hold range
Setup Save	5 groups inside the instrument or external U disk
Trigger Mode	Internal trigger, external trigger, BUS trigger, foot switch
Signal Output	PASS1/PASS2/PASS3/FAIL
Beep	GD/NG/OFF
Limit setting mode	3 bins; absolute value upper/lower limit or only unilateral judgment
Clear Zero	Open-circuit clear zero for all ranges
Interface	USB HOST/USB DEVICE / RS232 / HANDLER / RS485
Others	Temperature: 0ºC~40ºC; Humidity: ≤90%RH, no condensation
GENERAL FEATURES
Power Supply	Voltage:198V ~ 242V AC, Frequency: 47Hz~63Hz
Size and Weight	361mm(L) x 107mm(W)x264 mm(H); Weight: Approx. 4.6KG
ORDERING INFORMATION
Accessories	Three-terminal Test Clip USB Communication cable RS232 Communication cable Handler Connector AC Power Cord
Optional	Foot switch, data acquisition software

Detailed Photos
Packaging & Shipping https://ckt2017.en.made-in-china.com/product-list-1.html
Company Profile https://ckt2017.en.made-in-china.com/contact-info.html
Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.
FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.
Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.
Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.
Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.
Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.
For more questions, please feel free to send inquiries to us.

---
