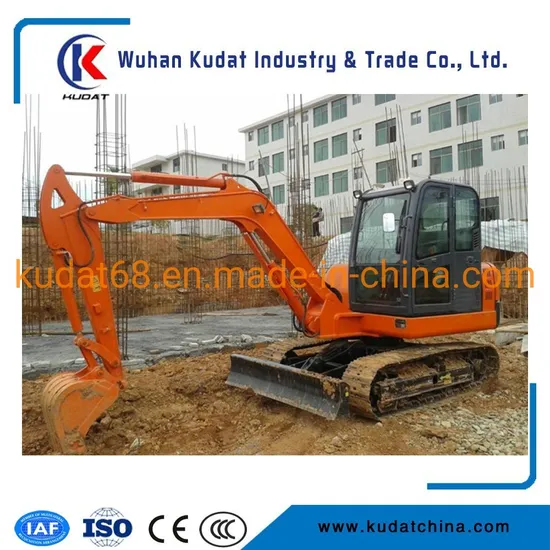

Mini Excavator 5t and 0.18m3 Bucket Equipped with Yanmar Engine

US$20,000.00-30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
KD50SR
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Color
Blue
Function
Earthmoving
Operating Weight(Kg)
5030 / 5100 (Kg)
Standard Bucket Capacity(M3)
0.18m3
Bucket Digging Force
30.3kn
Fuel Tank
103
Max Traction(Kn)
33.5
Swing Angle(°)
50(Rh) 85(Lh)
Travelling Speed(Km/H)
4.5 / 2.4 (Km/H)
Max Gradeability(°)
30
Transport Package
Bulk
Specification
CE
Trademark
kudat
Origin
China
Production Capacity
500PCS/Year

Product Description

Main Specification of KD50SR
Main Parameters
Operating weight:rubber track / steel track 5030 / 5100 (kg)
Standard bucket capacity 0.18m3
Bucket digging force 30.3kN
UNDERCARRIAGE & SWING
Travelling speed 4.5 / 2.4 (km/h)
Max. gradeability 30°
Swing speed 10.1rpm
ENGINE
Model YANMAR 4TNV88-BSSU
Type 4-cylinder, 4 stroke, water-cooled
Max. power/rpm 25.8kw / 2200rpm
Displacement 2.19L
Fuel tank 103L
HYDRAULIC SYSTEM
Type KYB
Main pump 2 Variable pumps, 1 Gear pump
Max. pump flow 2 x 45 + 37 (L/min)
Max. operating pressure 24.5 / 21 (Mpa)
Hydraulic oil tank 72L

Working parameters
WORKING RANGE
A. Max. digging height 5365mm
B. Max. dumping height 3792mm
C. Max. digging depth 3610mm
D. Max. vertical digging depth 2830mm
E. Max. digging radius 5947mm
F. Max. reaching level at ground 5824mm
G. Max. llifting height of blade 302mm
H. Max. digging depth of blade 274mm
R. Min. swing radius 2649mm
Width & height of blade 1860 x 300 (mm)
TRANSPORTATION DIMENSION
A. Track base 1900mm
B. Crawler length 2407mm
C. Ground clearance of platform 657mm
D. Tail swing radius 1410mm
E. Chassis width 1850mm
F. Standard width of crawler 400mm
G. Min. ground clearance 341mm
H. Max. ground clearance of crawler 572mm
I. Overall length 5735mm
J. Overall height 2554mm
K. Overall width 1860mm
