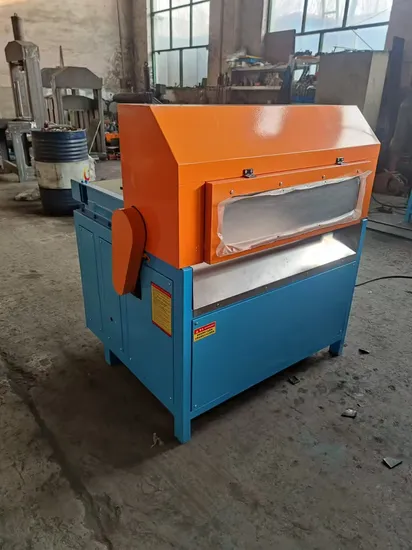

CNC Rubber Strip Cutting Machine Fabric Cutting Machine Overlapping Roll to Sheet

Product Description

Product Description Description:
1.The machine structure is simple and easy to operate.With glass plates positioning in front make the operation more secure. Feeding platform is made of pure mirror stainless steel, truly beautiful appearance and guarantees safe production, high automation, easy operation and low noise and has a good safety device, automatic lift feed roller device is also a friendly design.

2.Feed roller adopts high-precision dual clutch, free to adjust the width of strip material from 1mm to 50 mm, at high precision cutting.

3.The blade of the machine is alloy inlaid high speed wear-resistant material, sharp and long life service.

4.More humanity NC electrical control system. (You can control the start switch(button) only cut one time ,after confirming the weight in need already, then converted to a continuous strip cut) and significantly increased the electrical life ,a simple operation, more convenient to use.

5.CNC type is available for option:rubber feeding is controlled by PLC and stepper motor,with mechanical-spring material press roller to make the rubber sheet feeding more accurate and smooth,improving the cut precision for the rubber strip.Easy operation, operator just input the desired width in the computer,the right width strip will be cut continuously.During cutting process, you can freely adjust the width of cut material as per your actual need. This CNC type Rubber Strip Cutting Machine,combining advanced CNC automatic mechanical and electric integration system, it overcome the problem for the normal strip cutting machine whose transmission parts could be wore after long time use.
Technical Specification:

Model	XQ-450	XQ-600	XQ-800	XQ-1000
Max. feeding rubber width(mm)	450	600	800	1000
Max. cutting rubber thickness(mm)	20	20	20	20
Max. cut stroke (strip width:mm)	50-70	50-70	50-70	50-70
Cut efficiency	86 times/min	86 times/min	86 times/min	86 times/min
Cut precision	±0.1mm	±0.1mm	±0.1mm	±0.1mm
Motor power(KW)	1.5	1.5	3	3
Dimension(LxWxH:mm)	1050x700x1100	1150x850x1100	1400x1100x1200	1450x1240x1230
Weight(Kg)	500	750	840	970

Packaging & Shipping

After Sales Service We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Mold a Better Future Together ".
It is our promiste and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.

Company Information Since engaging in the field of hydraulic rubber machines manufacturing industry in 2003, by now we have been in the field nearly 20 years, our company has a dozen of engineers who are very experienced in R&D, and about 100 well-trained-qualified-skilled workers. Besides, there are a number of precise, digital control, advanced machine tools in our factory, all ensure every part and details of our machines with good performance and qualified running test before delivery to our customers on time.
Due to the sincere dedication and positive&efficient cooperative spirit of our great staff team, Geekung (Jichang)Hydraulic Machinery have been making steady progress in the past 20 years.

---
