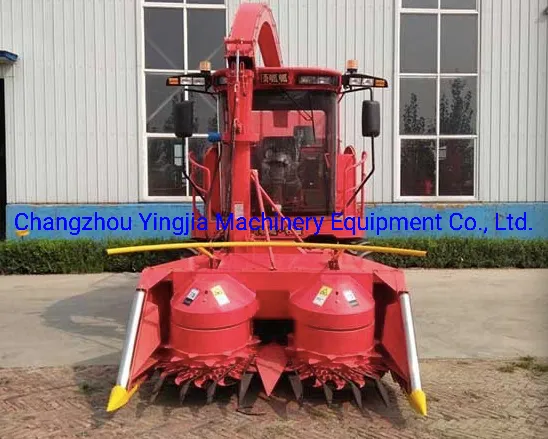

Self-Propelled Tractor Mounted Napier Forage Silage Harvester

Product Description

Product Description
Self-propelled tractor mounted napier forage silage harvester for grass cutter
1. The design of double discs header feeds all the crops uniformly into drum, which can cut all the stalks within the working width(not row by row), to improve the yield rate.
2. Adopted upright feeding roller, upright chaffcutter, which is simple structure and stable performance, not only cutting off the straw cuticle, but also retaining the nutrients,
3. They are equipped with Weichai inline 4-cylinder with 154hp turbo engine, efficient and high-powered.
4. The new cab with 270 degree wide field of vision and simple operating system makes it easy to drive.
5. Equipment with storage containers of forage makes forages recycle and harvest more convenient.
6. Big track and short wheelbase make it convenient and flexible to bend and turn
7. High efficiency, low price, and low fuel consumption, make this machine become more and more small and middle size pasture's first choice.
Detailed Photos

Product Parameters

NO	Item
1	Model		/	2100A
2	Type		/	Self
4	Dimension		mm	5300×2100×3300
5	Weight		kg	5200
6	Engine	Model	/	Weichai WP4G154E330
		Power	Hp	175
		Rpm	r/min	2300
7	Cutting wide		mm	2100
8	Min turning radius	Left	mm	5760
		Right	mm	6600
9	Wheelbase	Guide	mm	1540
		Driving	mm	1630
10	Tyre	Guide	/	10.0/75-15.3
		Driving	/	12.4-24
11	wheelbase		mm	2200
12	Min clearance		mm	380
14	Minimum cutting height		mm	≤150
15	Cutting header height		mm	0-400
16	Harvester speed		km/h	2-4
17	efficiency		hm²/h	0.42-0.84

---
