MF501NS302KNN32 Servo Motor Applicable To All Kinds Of PLC Controller

Product Details

Product Description

Product Description
Detailed Product Description
Category:Model:Rated Power:Series:MOQ:Brand:High Light:

Industiral AC Servo Motor	MF501NS302KNN32
500W	MF501 Series
1	Nidec Sankyo (Japan)
ewing machine servo motor,ac servo motor

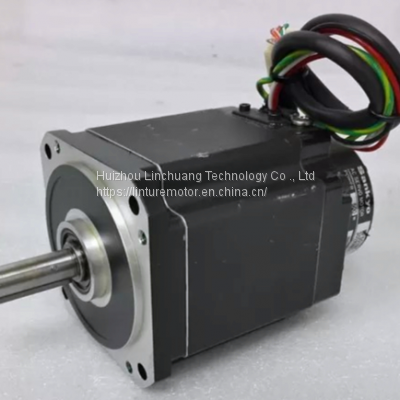

Nidec Sankyo Industrial 500W Industrial AC Servo Motor MF501NS302KNN32 3000RPM NEW
Nidec Sankyo Industrial Servo Motor's Use Applications
Embroidery Machine,Textile Machine,Packaging Machine etc
Removal Robot
Conveyer Machine
Processing Machine
Types of Sankyo Industrial AC Servo Motor

Inertia	Low Inertia Middle Inertia High Inertia
Flange Size	40 mm x 40 mm 60 mm x 60 mm 80 mm x 80 mm 130 mm x 130 mm
Rotational Speed	Rated Motor Speed / Max. [r/min] 2,000 / 3,000 [r/min] 3,000 / 6,000 [r/min]
IP Code	IP65 IP67

Precautions
Using the motor with rotations of 180 degrees or less will reduce the encoder's rotational accuracy.For a motor equipped with a brake, follow the brake voltage and polarity specifications.If the brake voltage is less than 12 V or the polarity is reversed, the encoder's rotational accuracy will be reduced.
Features
Suitable for applications with high speed rotations.Can be used for most applications.
Suitable for applications with low mechanical rigidity such as drive belt machinery.
Installing Precautions
Never remove the encoder or dismantle the motor body.
The motor shaft has anti-rust oil applied at the shipment. Please wipe off the oil before installing the motor. Make sure to perform centering (alignment) carefully and properly.
Operating the motor without sufficient alignments might cause vibrations or a shorter service life of the motor.
Installation Orientations and Oil Seals
The motor can be installed either vertically or horizontally. Please observe the following precautions.
Horizontal installation: Face the cable pull unit down in order to protect the motor against oil, water and dust.
Vertical installation : For a motor combined with a decelerator being on top of the motor shaft, use an oil sealed motor to prevent the decelerator oil from seeping into the motor.

---
